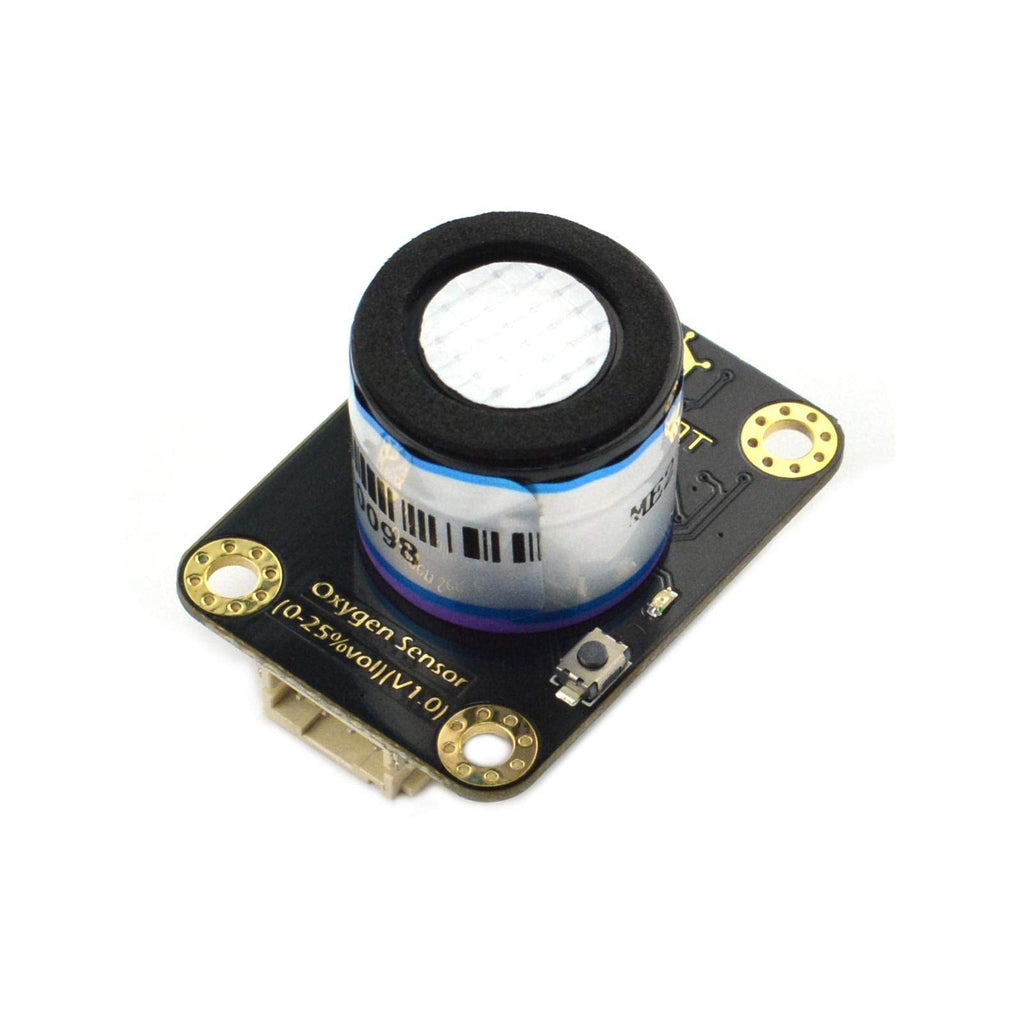

DFRobot Gravity I2C Oxygen Sensor – 0–25% Vol Range

The DFRobot Gravity I2C Oxygen Sensor is an electrochemical sensor designed for accurate ambient oxygen concentration measurement. It supports I2C digital output and operates within a 3.3–5.5V DC range, making it compatible with Arduino, ESP32, and Raspberry Pi platforms. The sensor provides stable performance with a 0–25% Vol measurement range, 0.15% Vol resolution, and ≤15 s response time. Designed for reliability, it offers high anti-interference capability and over 2 years service life in air. Ideal for air quality monitoring systems, portable detection devices, and industrial safety applications.

• Electrochemical oxygen sensing technology

• I2C digital output interface

• 0–25% Vol effective measurement range

• 0.15% Vol resolution

• ≤15 s response time

• High anti-interference performance

• 3.3–5.5V DC operating voltage

• Stability <2% per month

• Repeatability <2%

• Wide humidity tolerance 0–99% RH

• Operating temperature −20 to 50°C

• Service life >2 years in air

• Gravity interface for plug-and-play integration

• Detection Gas: Oxygen

• Operating Voltage: 3.3–5.5V DC

• Output Signal: I2C Digital Output

• Measurement Range: 0–25% Vol

• Maximum Measurement Limit: 30% Vol

• Resolution: 0.15% Vol

• Sensitivity: (0.10 ± 0.05) mA in Air

• Stability: <2% per Month

• Repeatability: <2%
• Response Time: ≤15 s

• Operating Temperature: −20 to 50°C

• Operating Humidity: 0–99% RH Non-Condensing

• Pressure Range: Standard Atmospheric ±10%

• Lifetime: >2 Years in Air
• Dimensions: 37 × 27 × 24.5 mm

• Weight: 37 g

• Compatibility: Arduino, ESP32, Raspberry Pi
