ZR370-02PM DC 12V Mini Air Vacuum Pump

The DGZQKJ ZR370-02PM DC 12V Mini Air Vacuum Pump is a compact diaphragm pump designed to generate both vacuum and airflow for portable and embedded pneumatic systems. Operating at a rated voltage of 12 V DC with a rated current of ≤280 mA, it delivers an airflow of approximately 2 L/min and a maximum vacuum pressure of -55 kPa. The pump is suitable for applications such as air sampling, vacuum suction, inflation, laboratory equipment, and small automation projects, with an operating voltage range of 10.8–13.2 V DC and a noise level of ≤65 dB. Its compact design allows easy integration with compatible 12 V DC power supplies, motor drivers, and embedded control systems.

• Diaphragm Pump Mechanism provides reliable air suction and pressure generation for compact pneumatic applications.
• Rated Voltage: Operates at 12 V DC with an operating voltage range of 10.8–13.2 V DC.
• Current Consumption: Rated current of ≤280 mA for low-power operation.
• Airflow Capacity: Delivers approximately 2 L/min of airflow under rated operating conditions.
• Vacuum Performance: Generates a maximum vacuum pressure of -55 kPa.
• Noise Level: Operates with a sound level of ≤65 dB.

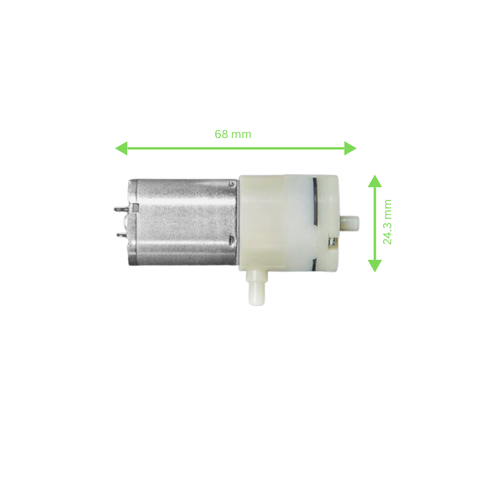

• Compact Construction: Lightweight ZR370-series design with hose barbed ports for easy tubing integration.
• Operating Temperature: Designed for ambient temperatures from 0 °C to 55 °C.

• Model | ZR370-02PM
• Product Type | Mini Diaphragm Air Vacuum Pump
• Rated Voltage | 12 V DC
• Operating Voltage | 10.8–13.2 V DC
• Rated Current | ≤280 mA
• Airflow Rate | Approximately 2 L/min
• Maximum Vacuum Pressure | ≤-55 kPa
• Suction Pressure (Rated) | 0 to -40 kPa (at 12 V DC)
• Noise Level | ≤65 dB
• Operating Temperature | 0 °C to 55 °C

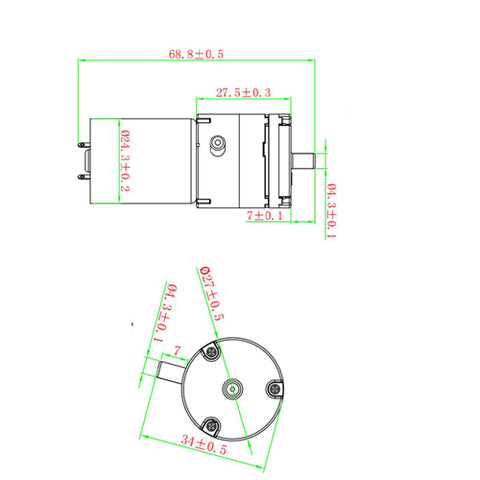

• Air Ports | Hose barb inlet and outlet for flexible tubing
• Motor Type | Brushed DC Motor with Diaphragm Pump Mechanism
