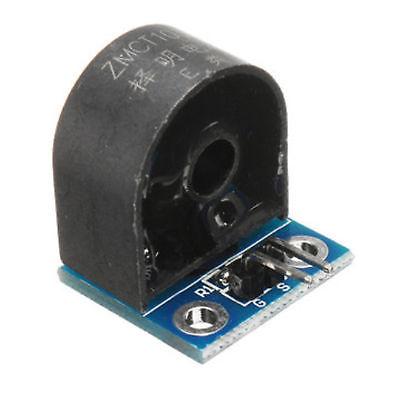

Current Transformer - 5A

  • Sale
  • Regular price 7 QAR
  • 2 available


Description

This current sensor is based on a current transformer. A current transformer (CT) is used for measurement of alternating electric currents. When current in a circuit is too high to apply directly to measuring instruments, a current transformer produces a reduced current accurately proportional to the current in the circuit, which can be conveniently connected to measuring and recording instruments. A current transformer isolates the measuring instruments from what may be very high voltage in the monitored circuit.

Features

  • On-board micro precision current transformer
  • Onboard sampling strength
  • The module can measure AC currents less than 5A, the corresponding analog output 5A/5mA
  • Rated Input Current: 5A
  • Rated output current: 5mA
  • PCB size: 18.3 x17 (mm)
  • Turns ratio: 1000: 1
  • Linearity: 0.2%
  • Precision: 0.2
  • Uses Insulation Voltage: 3000 V Measure
  • Sealing material: epoxy resin
  • Operating temperature: -40 °~ + 70 °
