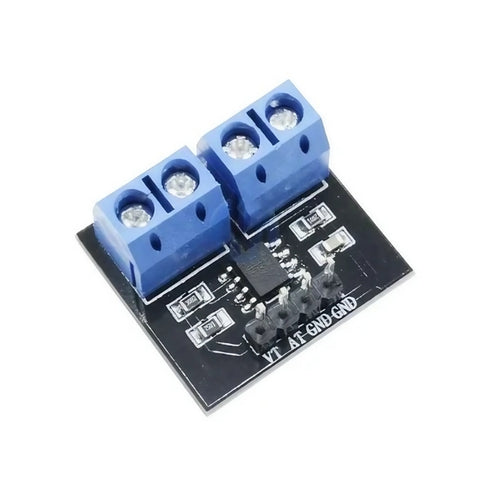

Voltage And Current Sensor Module – MAX471 3A

The Voltage and Current Sensor Module based on the MAX471 is designed for DC voltage and current measurement in embedded and Arduino-based systems. It supports current sensing up to 3A with a 1V/A output ratio and 2% typical accuracy. The onboard resistive voltage divider scales input voltage by a factor of 5, allowing safe measurement up to 25V when used with 5V ADC systems. With 10-bit ADC resolution, it enables precise monitoring of power consumption. Ideal for power analysis, battery monitoring, and load testing applications.

• MAX471 High-Side Current Sensor IC

• DC Current Measurement 0–3A

• 1V/A Analog Output Ratio

• Typical Accuracy ±2%

• Voltage Divider Ratio 1:5

• Input Voltage Up To 25V (5V ADC)

• Compatible With 3.3V And 5V Systems

• 10-bit ADC Resolution Support

• High-Side Load Monitoring

• Suitable For Arduino And MCU Platforms

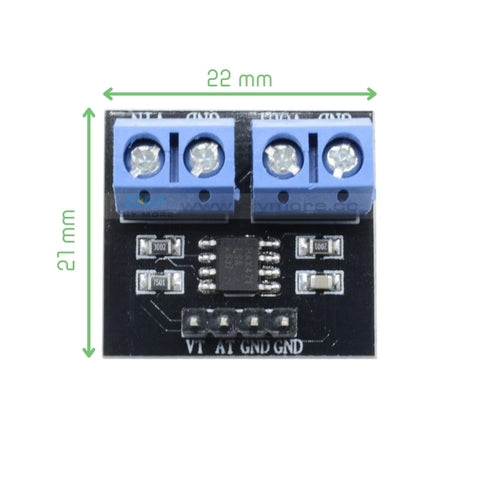

• Compact PCB Design

• Screw Terminal Input Connectors

• Current Sensing IC: MAX471

• Current Measurement Range: 0–3A DC

• Current Accuracy: ±2%

• Current Output Ratio: 1V/A

• Voltage Divider Ratio: 1:5

• Input Voltage Range (5V ADC): 3–25V DC

• Input Voltage Range (3.3V ADC): 3–16.5V DC

• ADC Resolution Reference: 10-bit (0–5V)

• Minimum Detectable Input Voltage: 0.02445V

• Output Type: Analog Voltage Output

• Operating Supply Voltage: 5V DC

• Mounting Type: PCB Module
