Placeholder Arduino Uno R3 (Voltaat Version)

Arduino Uno R3 (Voltaat Version)

  • Sale
  • Regular price 45 QAR
  • Product ID: VT-3100
    1 in stock

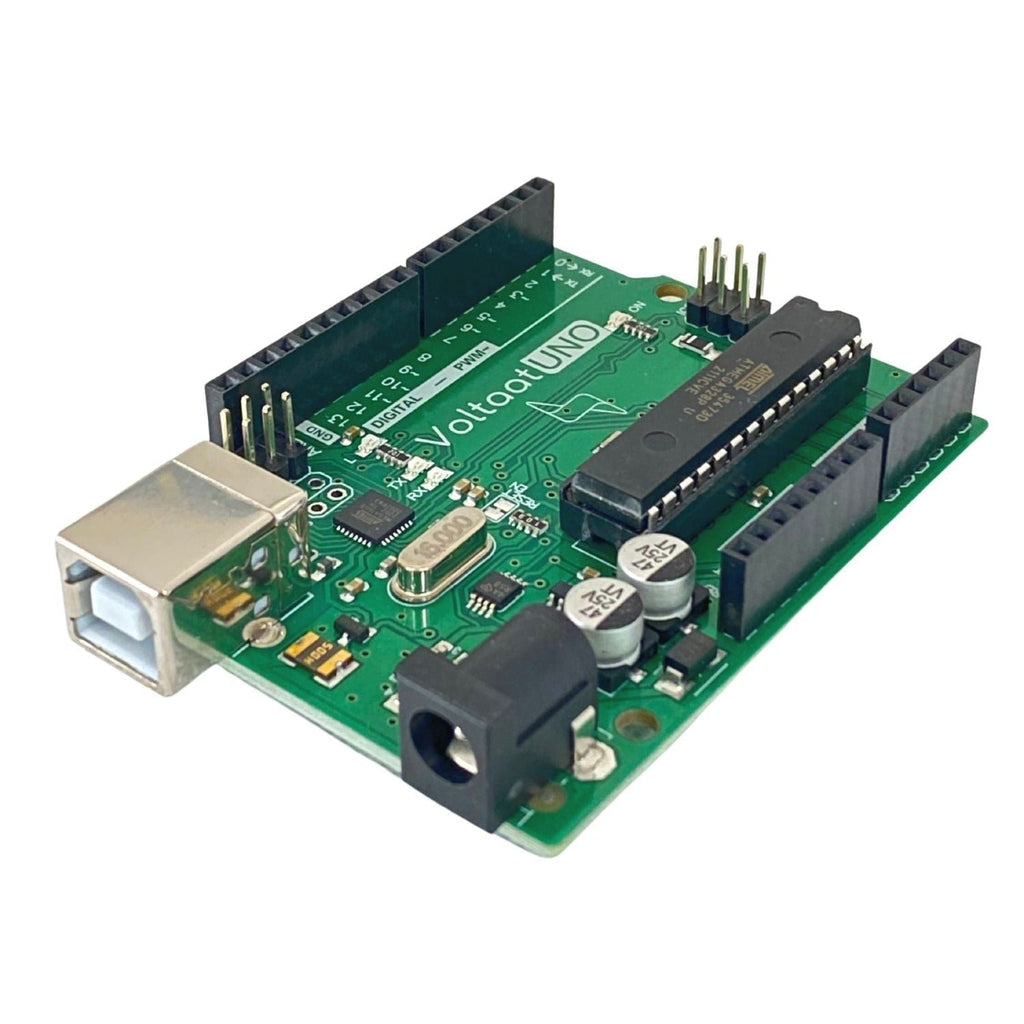

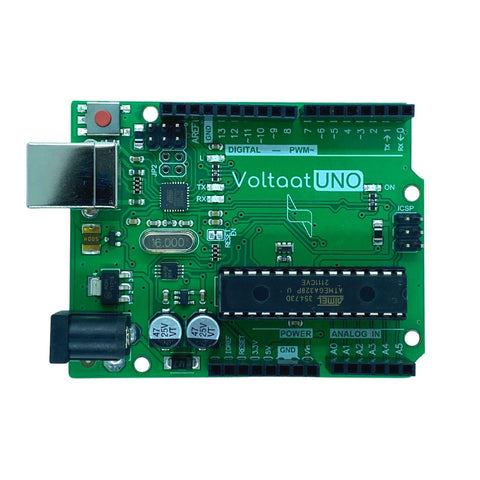

    Introducing the first Qatari Arduino UNO board. This is an awesome version of the original Arduino UNO board that has all the components of the Arduino UNO. It works exactly the same as the original Arduino UNO but for a much cheaper price! Arduino boards can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.g. Flash, Processing, MaxMSP). The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux).

    • Microcontroller: ATmega328P
    • Operating Voltage: 5V
    • Input Voltage (recommended): 7-12V
    • Digital I/O Pins: 14 (of which 6 PWM output)
    • Analog Input Pins: 6
    • DC Current per I/O Pin: 20 mA
    • DC Current for 3.3V Pin: 50 mA
    • Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by bootloader
    • SRAM: 2 KB
    • EEPROM: 1 KB
    • Clock Speed: 16 MHz
