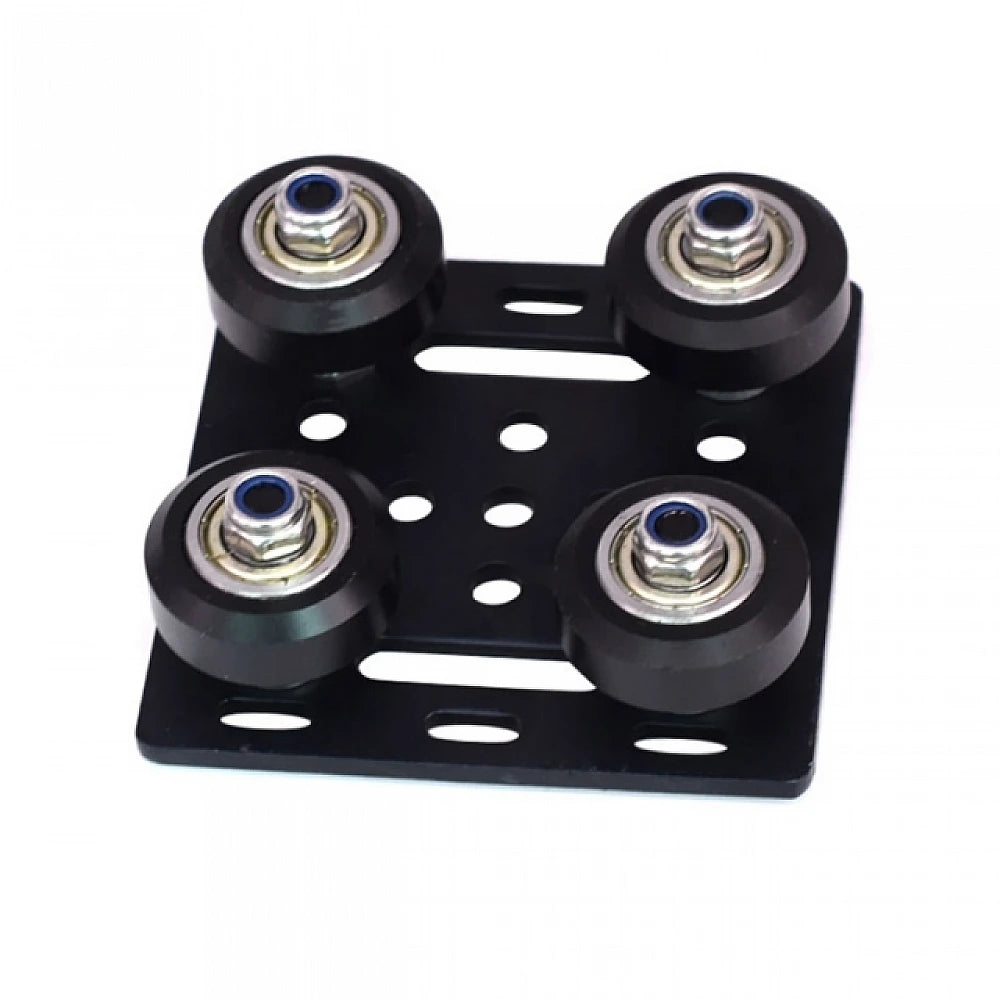

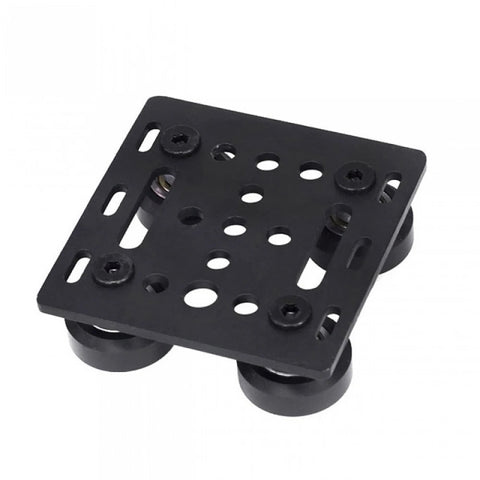

V-Slot Gantry Plate – For 20 Series Aluminum Profile

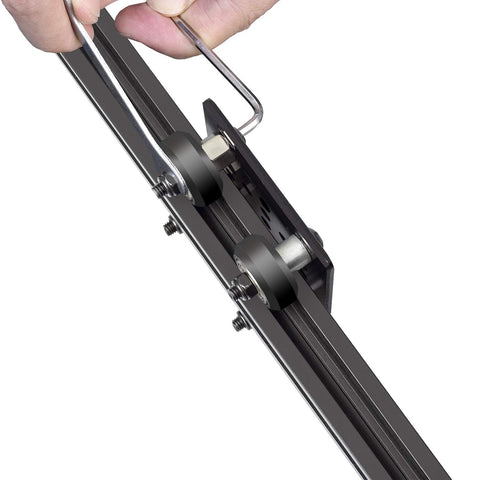

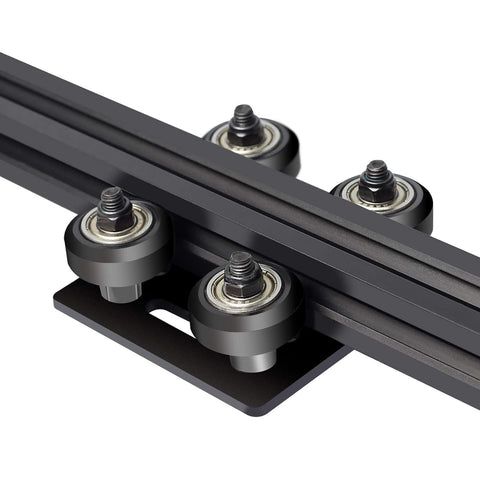

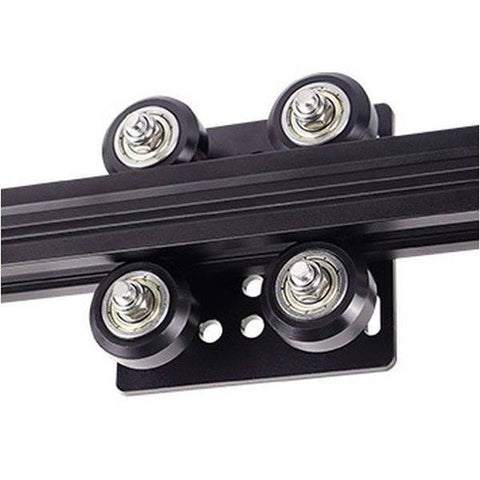

The V-Slot Gantry Plate is a precision-machined mounting plate designed for use with 2020 aluminum extrusion systems and V-Slot linear rails. It is typically paired with POM V wheels to create smooth and stable linear motion assemblies. Manufactured from durable aluminum, it ensures high rigidity and reliable performance under continuous operation. The plate supports flexible mounting configurations, making it suitable for CNC machines, 3D printers, and motion control systems.

• Aluminum gantry plate construction for high rigidity

• Compatible with 2020 V-Slot aluminum extrusion profiles

• Designed for use with POM V wheels

• Pre-drilled mounting holes for flexible assembly

• Supports smooth linear motion systems

• High load distribution for stability

• Corrosion-resistant anodized surface

• Suitable for CNC and 3D printer applications

• Accurate hole positioning for alignment

• Easy integration with standard V-Slot accessories

• Lightweight yet mechanically strong design

• Enables custom motion system configurations

• Material: Aluminum alloy

• Surface Finish: Anodized

• Compatibility: 2020 V-Slot Aluminum Profile

• Wheel Type: POM V Wheels

• Plate Thickness: 3 mm

• Mounting Hole Type: Pre-threaded and through holes

• Hole Pattern: Standard V-Slot gantry layout

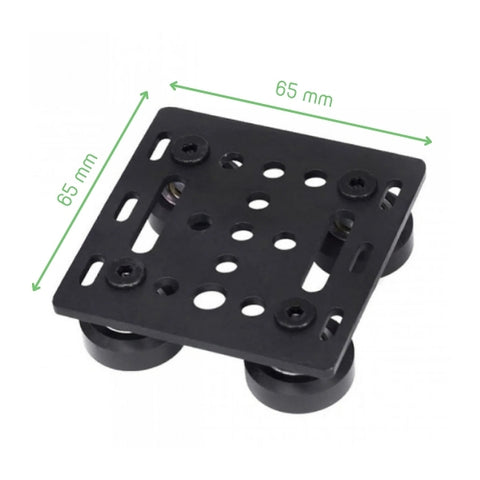

• Dimensions: 65 mm x 65 mm (approx.)

• Weight: 60 g

• Operating Load: Suitable for light to medium motion systems

• Application Type: Linear motion assembly

• Compatibility: CNC machines, 3D printers, robotics systems
