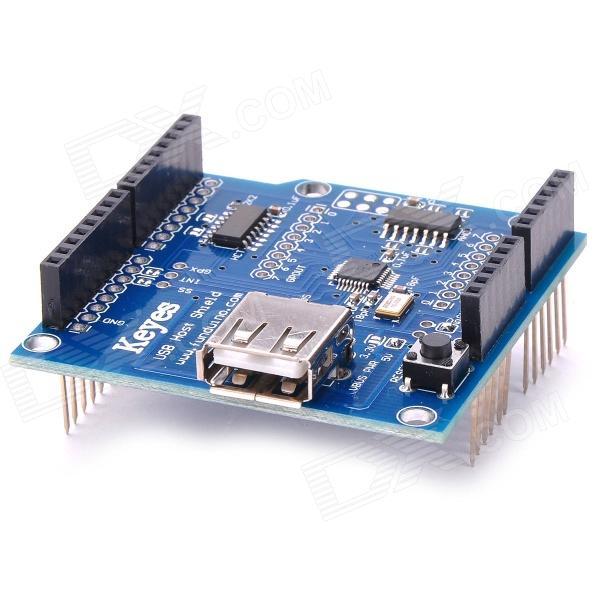

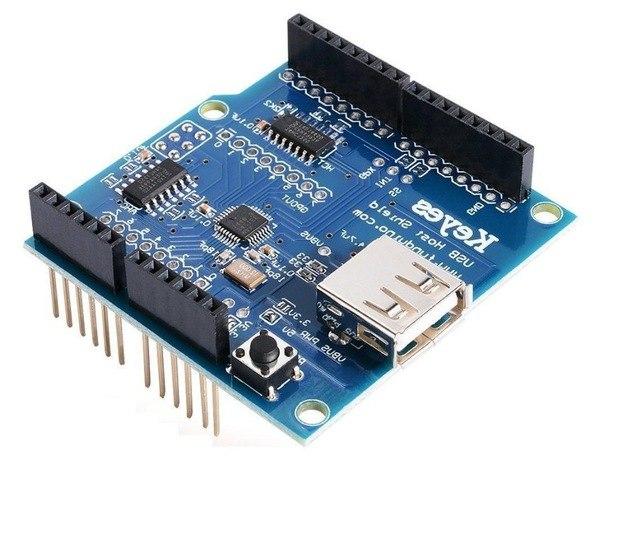

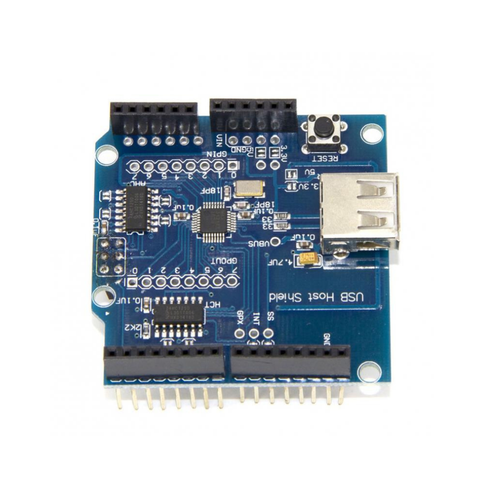

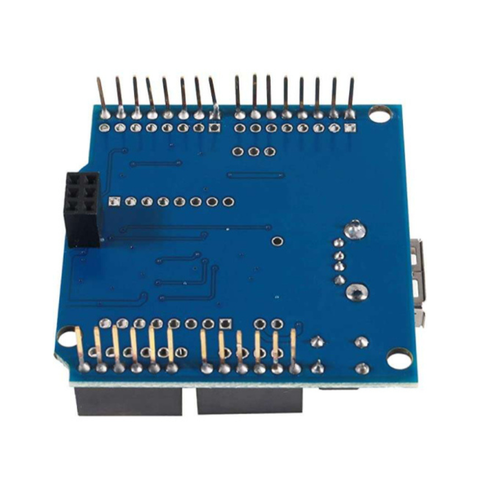

USB Host Shield for Arduino Boards

The USB Host Shield for Arduino allows Arduino boards to interface with USB devices such as keyboards, mice, game controllers, and USB storage.
It integrates a USB host controller for managing communication with connected peripherals.
The shield stacks directly onto standard Arduino headers for easy installation.
It supports a wide range of USB devices using the USB Host library for Arduino.
Typical applications include robotics control, HID device integration, and USB-based data acquisition systems.

• USB Host Controller enabling communication with USB peripherals

• Arduino-Compatible Headers for direct stacking and connection

• Supports HID Devices including keyboards, mice, and game controllers

• SPI Communication Interface for reliable data transfer

• Status Indicator LEDs for power and connection monitoring

• Compact PCB Layout suitable for embedded USB applications

• Product Type | USB Host Shield

• Supported USB Devices | HID, mass storage, game controllers

• Communication Interface | SPI

• Logic Voltage | 5 V (Arduino compatible)

• Mounting Type | Arduino shield stackable

• Package Type | PCB shield

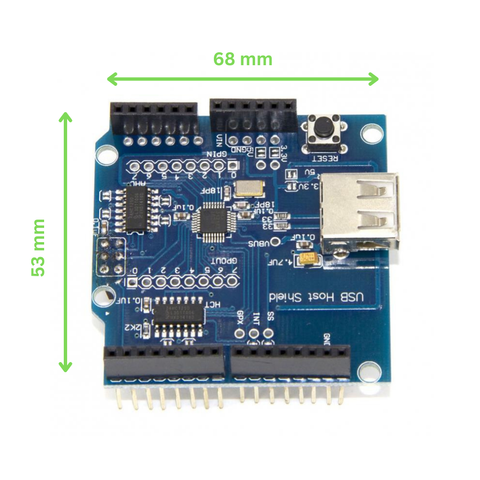

• Dimensions | 68 mm × 53 mm

• Compatibility | Arduino Uno, Mega, Leonardo, and compatible boards
