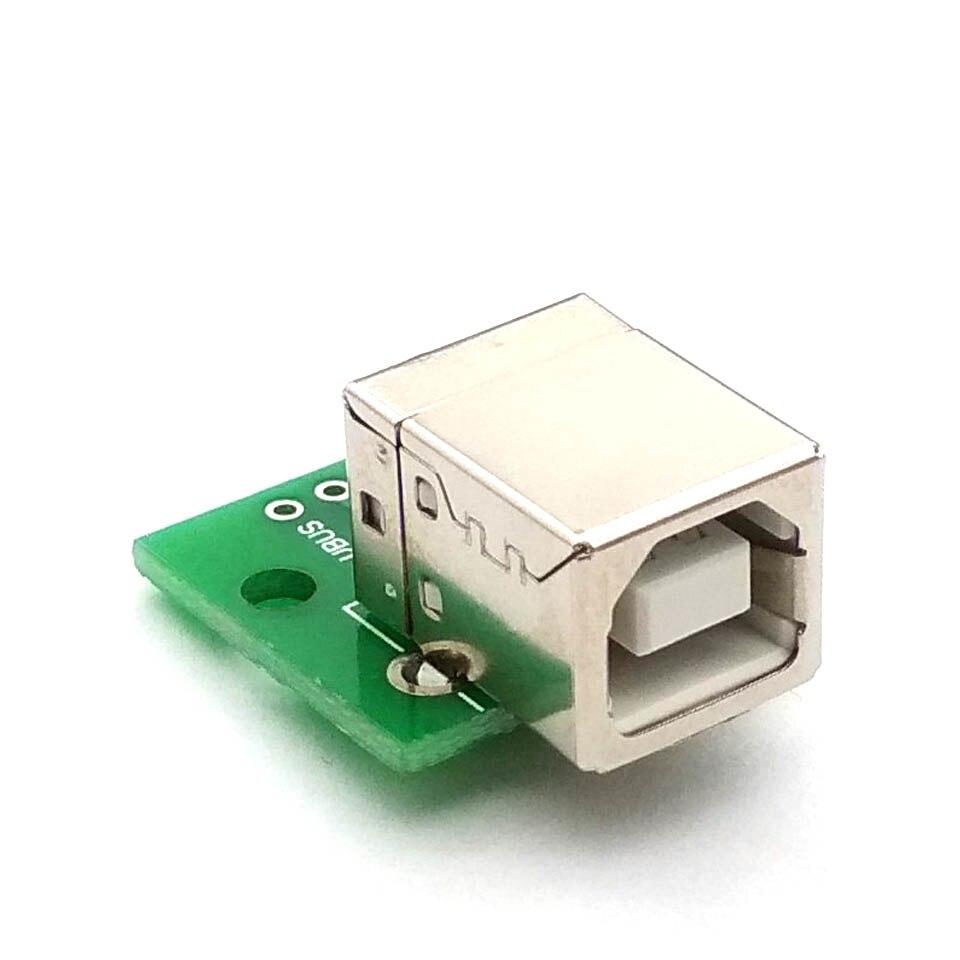

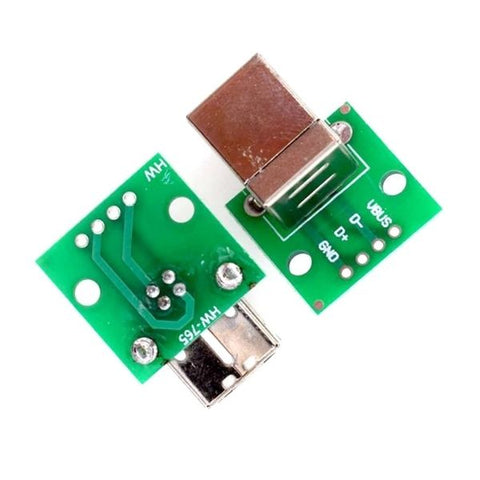

USB Type-B Female to DIP Adapter Board

The USB Type-B Female to DIP Adapter Board is a compact breakout module designed for quick prototyping and USB interface development. It converts a standard USB Type-B female connector into accessible DIP pins for easy integration with breadboards, custom PCBs, and embedded systems. The board provides direct access to all USB power and data lines, simplifying testing and development tasks. Built with a standard 2.54 mm pin layout, it is suitable for DIY electronics, microcontroller projects, and USB communication applications.

• USB Type-B female connector breakout board

• Direct access to USB power and data pins

• Standard 2.54 mm DIP pin spacing

• Compatible with breadboards and prototype PCBs

• Compact PCB design for embedded applications

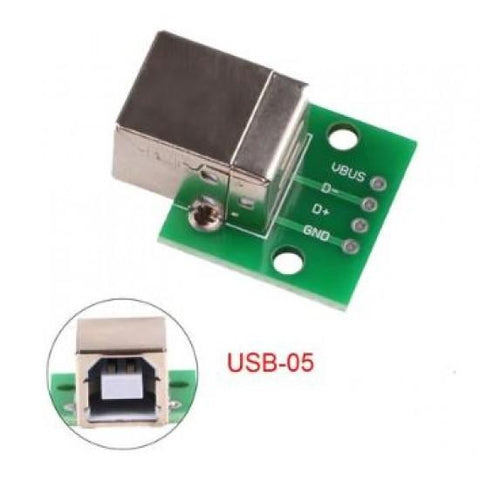

• Clearly labeled pinout connections

• Suitable for USB power projects

• Supports USB data signal prototyping

• Easy soldering and wiring integration

• Durable through-hole pin layout

• Ideal for microcontroller development

• Simplifies USB interface testing

• Lightweight and portable module

• Suitable for DIY and educational projects

• Connector Type: USB Type-B Female

• Board Type: DIP Breakout Adapter

• Pin Pitch: 2.54 mm

• USB Signals: VBUS, D+, D−, GND

• Mounting Type: Through-Hole DIP

• PCB Material: FR4

• Connector Orientation: Vertical

• Supported USB Standard: USB 2.0

• Board Color: Blue

• Operating Voltage: 5V DC

• Dimensions: 28 × 22 mm

• Weight: 5 g

• Application: USB prototyping and signal breakout

• Compatibility: Breadboards and custom PCBs

• Usb type B Female Connector 3D Model
