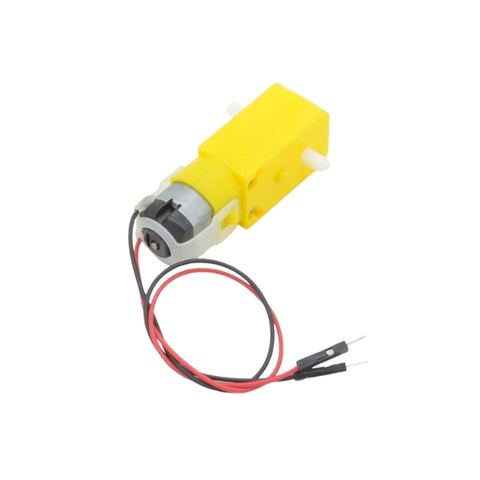

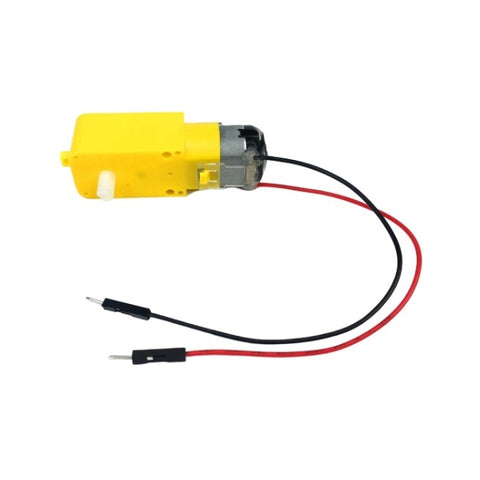

TT DC Motor with Plastic Gearbox – 1:48 Dual Shaft with Wires

The TT DC Motor with Plastic Gearbox is a compact dual-shaft motor designed for small robotic and educational applications. It features a 1:48 gear ratio that provides higher speed compared to standard 1:90 TT motors, operating within a 3–6V DC range. The motor delivers stable performance with moderate torque and supports PWM speed control via motor drivers. Its lightweight plastic gearbox ensures efficient operation for mobile robots and prototypes. Ideal for Arduino-based projects, robotics platforms, and STEM learning applications.

You will need a suitable motor driver to drive this motor as microcontroller cannot drives it directly! Here are some of our recommendation:

• 2Amp 7V-30V L298N Motor Driver / Stepper Driver (2 Channels)

• 1:48 Gear Ratio for higher rotational speed
• Dual Shaft Design for flexible mounting
• Operating Voltage Range 3V–6V DC
• No-load Speed up to 250 RPM at 6V
• Stall Current up to 1.5A at 6V
• Lightweight Plastic Gearbox Construction
• Compatible with L298N and motor drivers
• PWM Speed Control Supported
• Simple 2-wire interface
• Suitable for small robots and smart cars
• Moderate torque output up to 0.8 kg·cm
• Compact size for embedded designs
• Pre-attached jumper wires for easy connection

• Operating Voltage: 3–6V DC

• No Load Current: 150–160mA

• No Load Speed: 120–250 RPM

• Stall Current: 1.1–1.5A

• Gear Ratio: 1:48
• Torque Range: 0.15–0.60 Nm

• Stall Torque: 0.8 kg.cm

• Motor Type: Brushed DC Motor

• Shaft Type: Dual Shaft

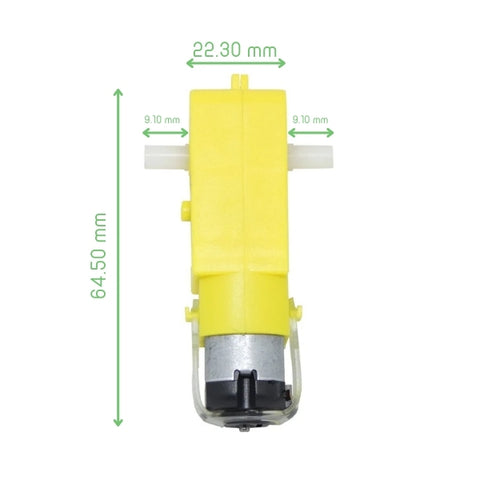

• Body Dimensions: 70 × 22 × 18 mm

• Weight: 30.6 g

• Connection Type: Jumper Wires
