TIP41 NPN Power Transistor

  • Sale
  • Regular price 2 QAR
  • Product ID: VT-1362
    30+ in stock


    TIP41 transistor is an NPN power transistor with a maximum gain of 75. It has a collector continuous current of 6A and a Collector-Emitter voltage of 100V. The base current is about 3A and the Emitter base voltage is 5V. The TIP41 Bipolar Power Transistor is designed for a general-purpose power amplifier and switching applications.

    • Collector-Emitter Voltage (VCEO): 40V
    • Collector-Base Voltage (VCBO): 40V
    • Emitter−Base Voltage (VEB): 5.0V
    • Collector Current (Ic): 6A
    • DC Current Gain (hFE): 15 to 75
    • Power Dissipation (PD): 65W
    • Minimum Operating Temperature: -65 °C
    • Maximum Operating Temperature: 150 °C
    • fT Current Gain Bandwidth Product (VCE = 10V, IC = 500mA) 3.0 MH

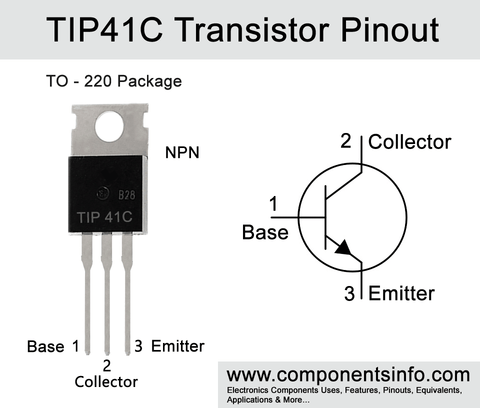

    • Available in TO-220 Package
