SpeedyBee Mario 5 XH Advanced Version Frame

  • Sale
  • Regular price 299 QAR
Product ID: VT-4424
2 in stock

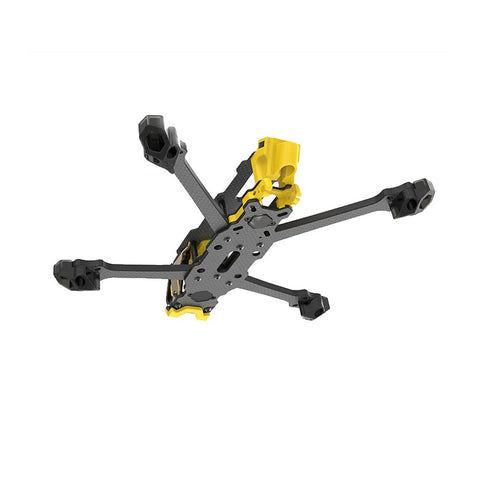

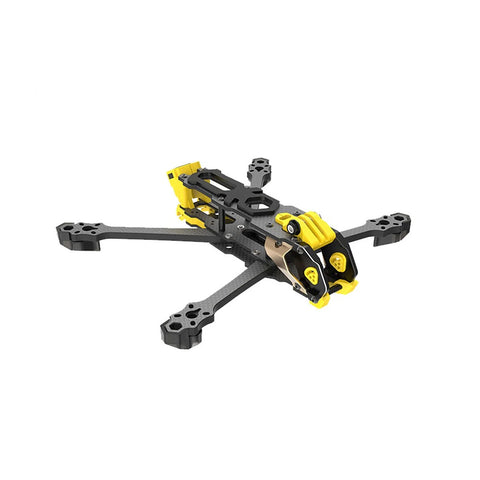

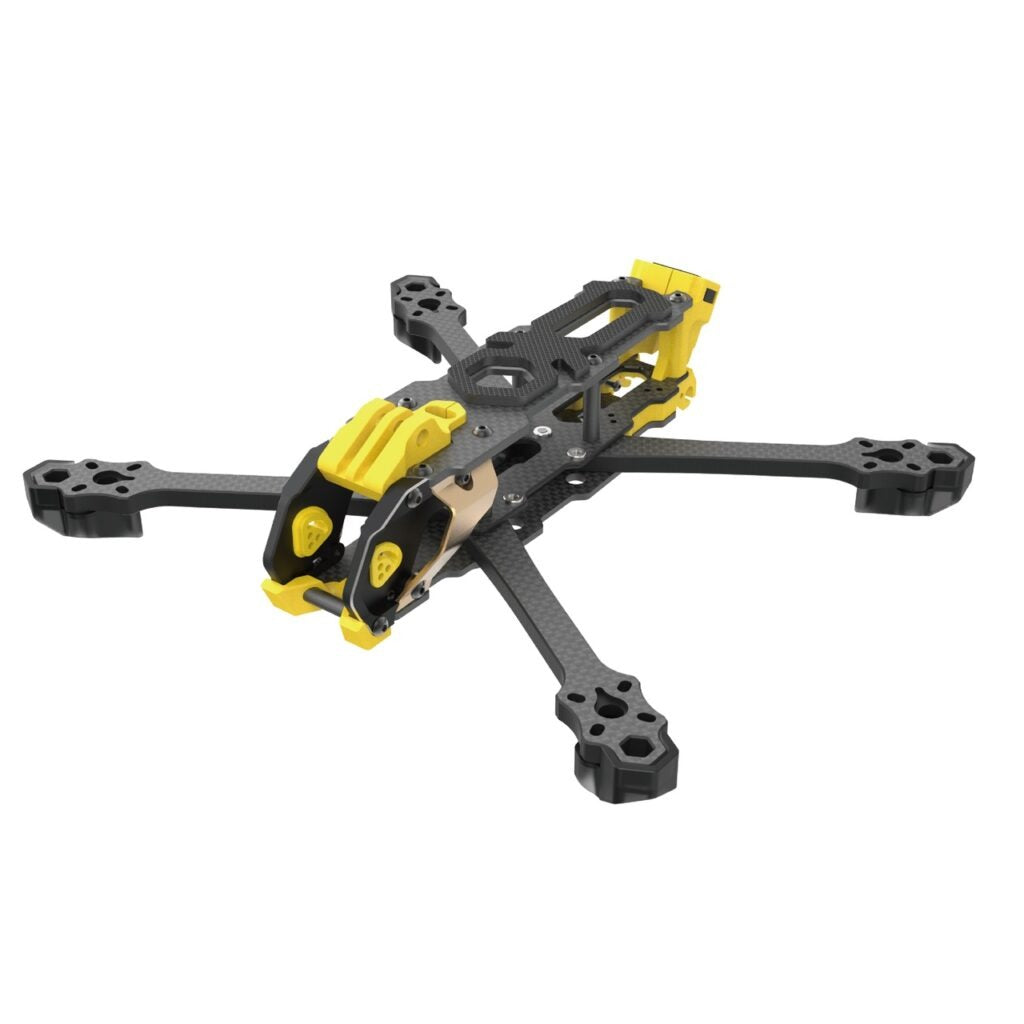

The SpeedyBee Mario 5 Frame is a high-quality and durable freestyle frame for FPV drones. It is made of T300 3K carbon fibre and aviation aluminium alloy, and has a sleek and sturdy design. The frame has a wheelbase of 226-227mm, and can support up to 5.1 inch propellers. The frame also has multiple mounting options for flight controllers, ESCs, VTXs, receivers, capacitors, and GPS. The SpeedyBee Mario 5 Frame is a versatile and reliable frame for your drone, whether you are looking for speed, agility, or endurance.

Mario 5 XH Wheelbase

226mm

Mario 5 XH Weight

126 ±5g (3D Printed Parts Excluded)

167±5g (3D Printed Parts and Injection)

Top Plate Thickness

2.5mm(T300 3K)

Middle Plate Thickness

2.0mm(T300 3K)

Bottom Plate Thickness

2.5mm(T300 3K)

Arm Thickness

6mm(T300 3K)

Camera Mounting Screw

7mm

3D Printed Parts

Yellow TPU

Battery Anti-Slip Pad

Silicone 3mm

Motor Spring Hole Position

Φ8mm

Compatible Propeller Size

Max 5.1 Inch

Motor Mounting Hole Distance

16-19mm

FC Mounting Hole

30.5x30.5(M3)

VTX Mounting Hole

20x20(M2) / 25.5x25.5(M2)

Head Material

Aviation Aluminum Alloy

Aluminum Column Material

7075 D5*23mm/D46*22mm

Internal Mounting Height

23-31mm

Receiver Installation Space

25*13*6mm

Suitable Capacitor Size

Φ10mm*20mm

GPS Installation Size

18*18*7
