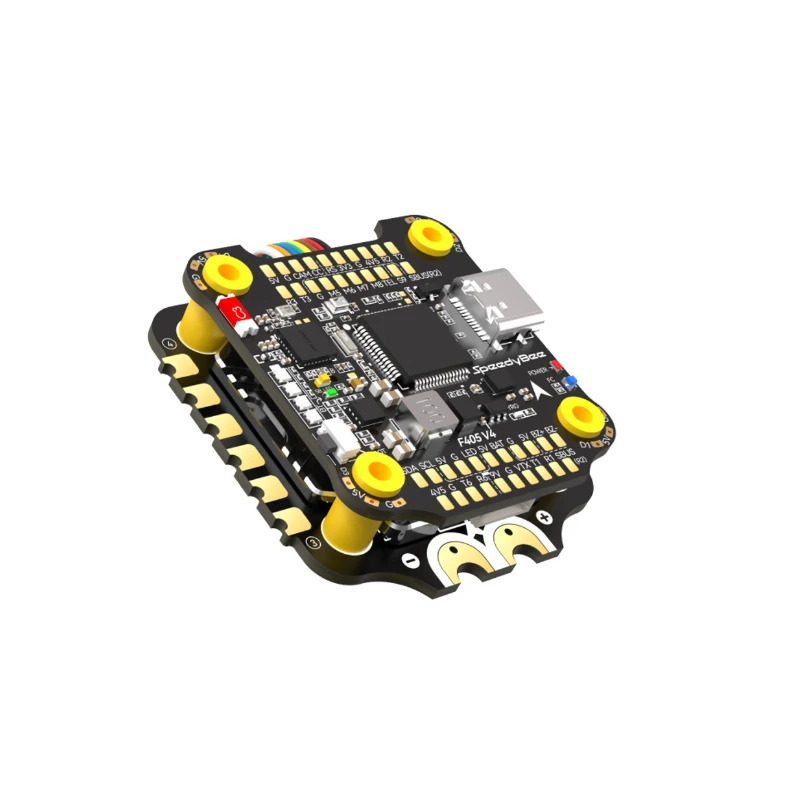

SpeedyBee F405 V4 BLS Flight controller & 55A ESC Stack

The fourth version of the SpeedyBee stack includes an FC F405 and a BLHeli_S 55A ESC. The 30x30mm stack can support up to eight motors, is configured via Bluetooth, has a bult-in barometer as well as an ICM42688P gyro. The SpeedyBee F405 V4 stack is both complete and inexpensive, all with good performance. Always equipped with a Bluetooth controller allowing settings via the mobile application, the stack also has a TVS diode protecting the electronics. Integrated LEDs indicate the battery charge level and 2 3A BECs provide a 5V and 9V power supply.

• MCU : STM32F405
• IMU(Gyro) : ICM42688P
• USB Port Type : Type-C
• Barometer : Built-in
• OSD Chip : AT7456E chip
• BLE Bluetooth : Supported.
• WIFI : Not supported
• Compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit
• ESC Signal : M1 - M4 on bottom side and M5-M8 on front side.
• UART : 6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6
• ESC Telemetry : UART R5(UART5)
• I2C Supported.
• Traditional Betaflight LED Pad : Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.
• Buzzer : BZ+ and BZ- pad used for 5V Buzzer
• Power Input : 3S - 6S Lipo
• RSSI Input : Supported.
• Smart Port / F.Port : Not supported
• Firmware Target Name : SPEEDYBEEF405V4
• Mounting : 30.5 x 30.5mm( 4mm hole diameter)
• Dimension : 41.6(L) x 39.4(W) x 7.8(H)mm
• Weight : 10.5g

• Firmware : BLHeli_S J-H-40
• Wireless Configuration : Full Configuration Supported in the SpeedyBee app
• Continuous Current : 55A * 4
• Burst Current : 70A(5seconds)
• TVS Protective diode : Yes
• External Capacitor : 1000uF Low ESR Capacitor(In the package)
• ESC Protocol : DSHOT300/600
• Power Input : 3-6S LiPo
• Power Output : VBAT
• Current Sensor : Support (Scale=386 Offset=0)
• ESC Telemetry : Not supported
• Mounting : 30.5 x 30.5mm( 4mm hole diameter)
• Dimension : 45.6(L) * 44(W) * 8mm(H)
• Weight : ~23.5g

• 1x F405 V4 FC
• 1x BLS 50A 4in1 ESC
• 1x 35V 1000uF Capacitor
• 5x M3 nylon nut
• 5x M3 silicone o-ring
• 5x M3*8mm grommet
• 5x M3*8.1mm grommet
• 1x Sh 1.0mm 15mm 8pin cable
• 1x Sh 1.0mm 75mm 8pin cable
• 5x M3*30 screw
• 1x DJI 6pin cable
• 1x XT60 power cable (70mm)
