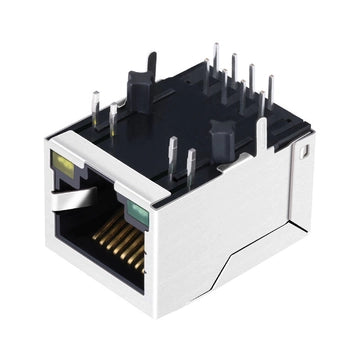

RJ45 Ethernet Female Socket with Dual LED Indicators

The RJ45 Ethernet Female Socket with LED is a through-hole PCB connector designed for Ethernet communication and network-based embedded applications. It supports Cat5, Cat5e, and Cat6 Ethernet cables, making it suitable for reliable wired data transmission over long distances. The connector features integrated LED indicators for link and activity status monitoring during operation. Built with PCB mounting posts for stable installation, it is widely used in networking devices, industrial controllers, IoT systems, and custom communication interfaces.

• Through-hole RJ45 Ethernet female connector
• Integrated dual LED status indicators

• Compatible with Cat5 Cat5e and Cat6 cables

• Standard 8P8C Ethernet interface

• PCB mounting support posts included

• Stable mechanical PCB attachment

• Suitable for Ethernet communication applications

• Reliable data link indication LEDs

• Compact design for embedded systems

• Supports networked module connections

• Durable plastic housing construction

• Easy integration with custom PCBs

• Commonly used in IoT and industrial devices

• Optimized for wired LAN connectivity

• Compatible with standard Ethernet sockets

• Connector Type: RJ45 8P8C Female Socket

• Mounting Type: Through-Hole PCB Mount

• LED Indicators: Dual Integrated LEDs

• Port Configuration: Single Port

• Interface Standard: Ethernet RJ45

• Compatible Cable Types: Cat5 Cat5e Cat6

• Contact Pins: 12 Pins

• Housing Material: High Temperature Thermoplastic
• Contact Material: Copper Alloy

• Contact Plating: Gold Flash over Nickel

• Mounting Posts: PCB Mechanical Support Posts

• Operating Temperature: -40°C to 85°C

• Insulation Resistance: Minimum 500 MΩ

• Withstanding Voltage: 1000V RMS for 1 Minute

• Application: Ethernet Networking and Embedded Systems

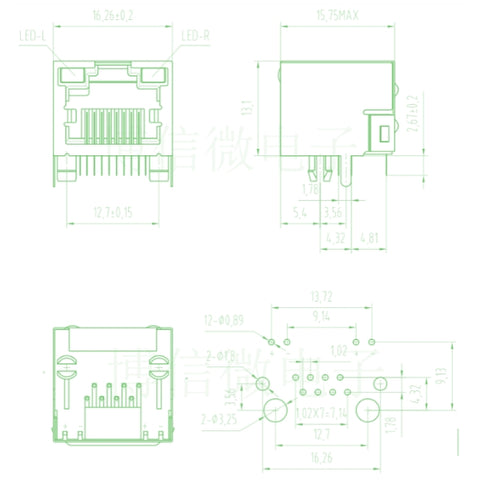

• RJ45 Ethernet Female Socket with Dual LED Indicators 3D Model
