Voltaat COMP_LEDS_illumination RGB LED Stick (8 LEDS)
Voltaat COMP_LEDS_illumination RGB LED Stick (8 LEDS)
Voltaat COMP_LEDS_illumination Addressable RGB LED Stick – 8 NeoPixel LEDs WS2812B SK6812
Voltaat COMP_LEDS_illumination Addressable RGB LED Stick – 8 NeoPixel LEDs WS2812B SK6812

Addressable RGB LED Stick – 8 NeoPixel LEDs WS2812B SK6812

  • Sale
  • 11 QAR
Product ID: VT-1203
This product is available.

We do not currently have an estimate for arrival date. Contact us for urgent custom order!

The Addressable RGB LED Stick is a compact lighting module designed for embedded systems and creative LED applications. It integrates 8 individually addressable WS2812B or SK6812 LEDs, allowing full control of color and brightness using a single data pin. Each LED includes an internal driver with constant current regulation, ensuring stable color output across voltage variations. The module operates on 5V DC and supports daisy-chaining for scalable designs. It is suitable for prototyping, decorative lighting, wearable electronics, and interactive projects.

  • Integrated WS2812B or SK6812 addressable RGB LEDs
  • 8 individually controllable 5050 RGB LEDs
  • Single-wire communication protocol
  • Constant current LED driver per pixel
  • Chainable design for extended LED arrays
  • 5V DC operating voltage compatibility
  • Consistent color output under voltage variations

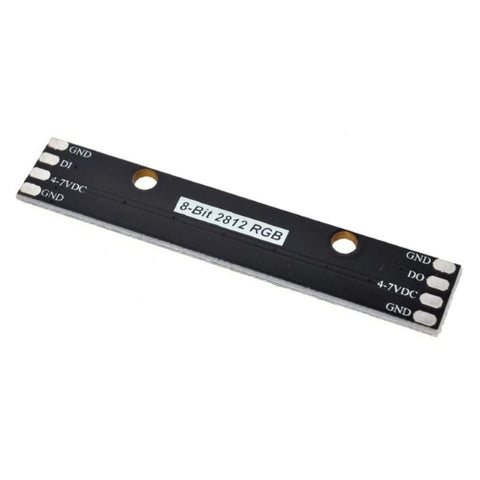

  • Compact PCB with mounting holes
  • Wide 120° viewing angle LEDs
  • No external resistors required
  • Compatible with Arduino, Raspberry Pi, ESP32
  • Supports popular NeoPixel libraries
  • Slim and lightweight PCB construction



  • LED Type: WS2812B or SK6812
  • LED Count: 8 RGB LEDs
  • Operating Voltage: 5V DC (4–7V supported)
  • Current per LED: 18 mA (typical)
  • Max Current (All LEDs On): 144 mA
  • Communication Protocol: Single-wire digital (NeoPixel)
  • Viewing Angle: 120°
  • Red Wavelength: 620–630 nm
  • Green Wavelength: 515–530 nm
  • Blue Wavelength: 465–475 nm
  • Luminous Intensity (Red): 550–700 mcd
  • Luminous Intensity (Green): 1100–1400 mcd
  • Luminous Intensity (Blue): 200–400 mcd
  • Dimensions: 51.1 × 10.22 × 3.19 mm
  • Weight: 2.57 g
  • Control Interface: Digital GPIO
  • Compatibility: Arduino, Raspberry Pi, ESP platforms
