RFID Kit

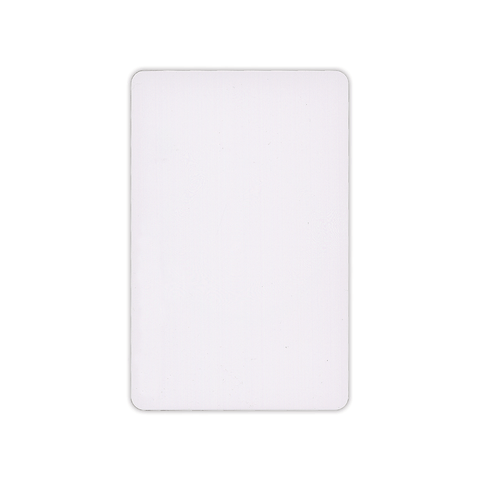

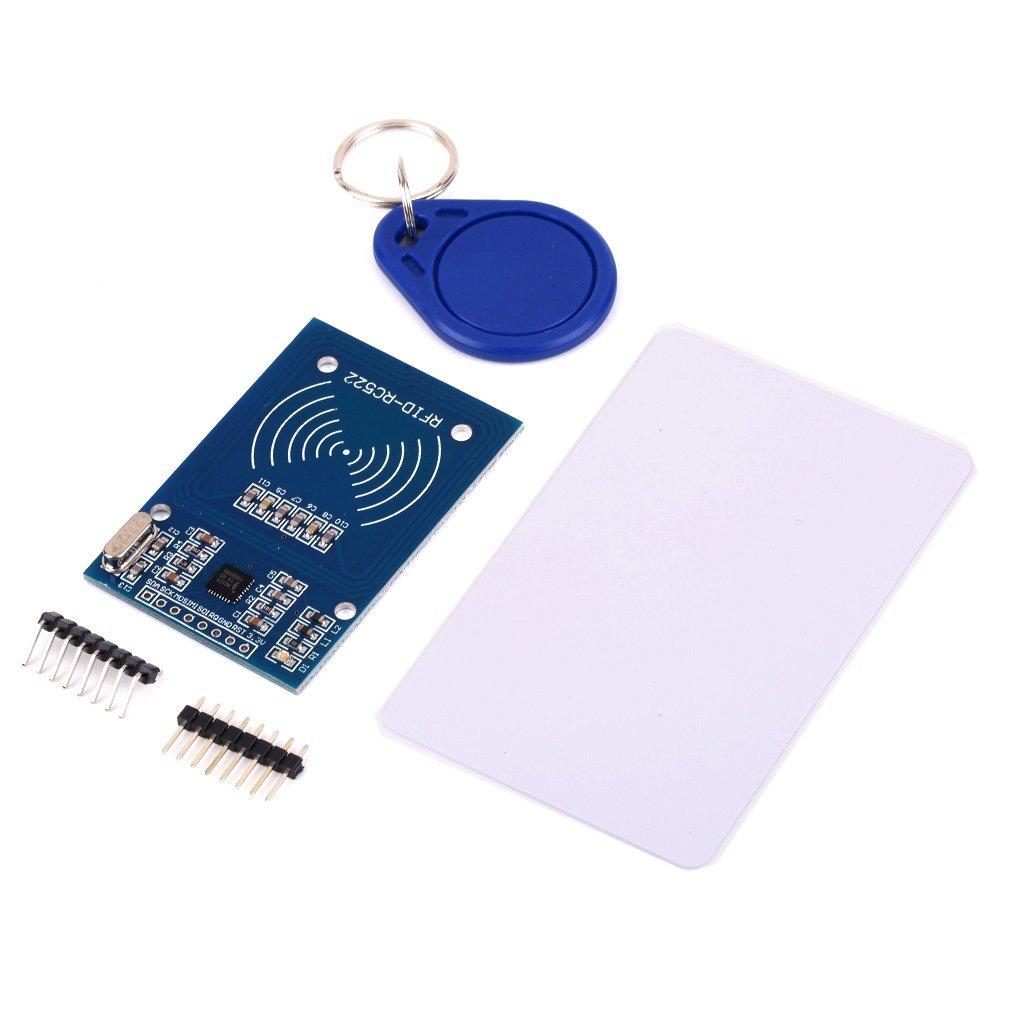

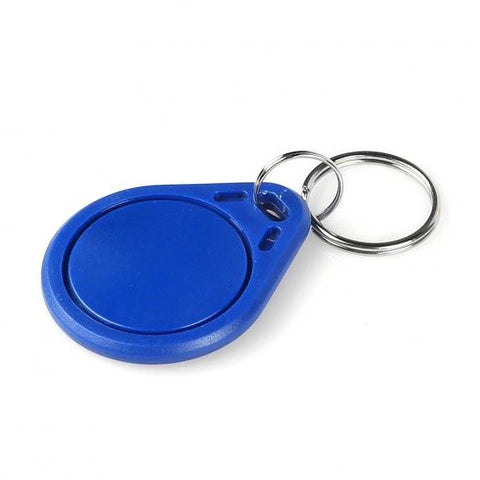

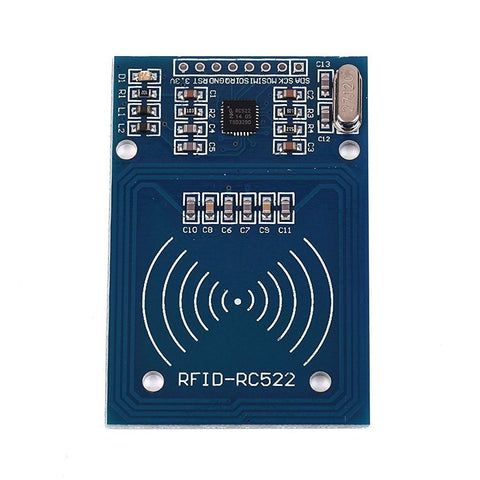

The RFID Kit, is an all-in-one kit that offer everything you need to get your next RFID project off the ground. This kit includes RFID Reader module, one round tag, and one RFID card. The RFID Reader module is simple to integrate with microcontrollers like Arduino with its SPI interface.

• Basic on the MFRC522 Chip
• Dimensions of Rectangle Tag (approx.): 32 x 40.5 x 4.2 mm
• Dimensions of Round Tag (approx.): 0.87 × 85.5 × 54 mm
• Interface: SPI
• Operating current: 13-26mA
• Operating frequency: 13.56MHz
• Operating voltage: 3.3V
• Read Range: 0-60mm
• Dimensions(approx.): 40 × 60mm

• MFRC522 Chip Datasheet
