Raspberry Pi NVMe SSD Kit – 512 GB Storage

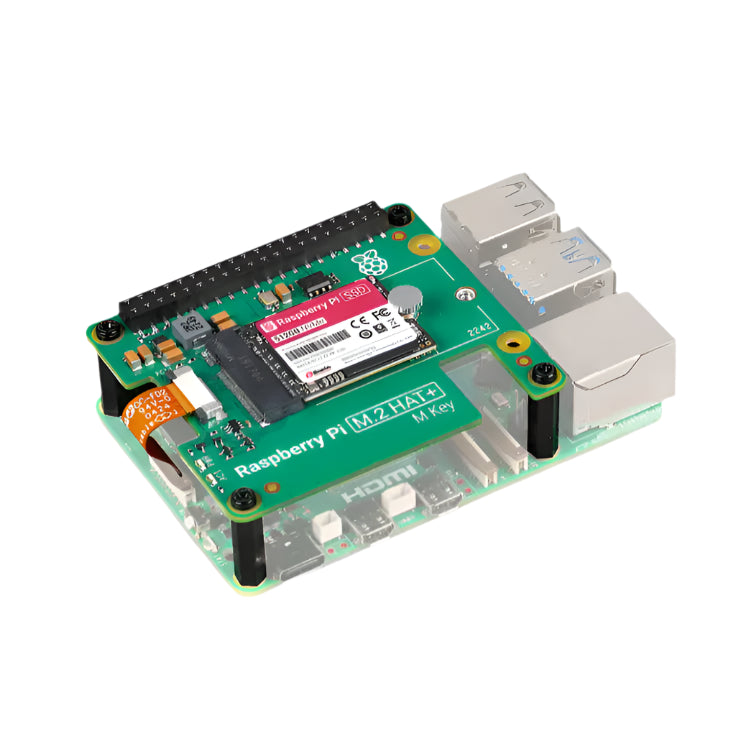

The Raspberry Pi NVMe SSD Kit is designed to enable the use of a 512 GB NVMe solid-state drive with the Raspberry Pi M.2 HAT+ on Raspberry Pi 5. It provides a practical solution for expanding local storage capacity or booting the operating system directly from an SSD instead of a microSD card. The included NVMe SSD is approved for Raspberry Pi 5 and operates over a single-lane PCIe 2.0 interface. It delivers up to 40K IOPS for 4 KB random read and up to 70K IOPS for 4 KB random write operations. The SSD is supplied blank and requires an external interface for operating system installation prior to boot use.

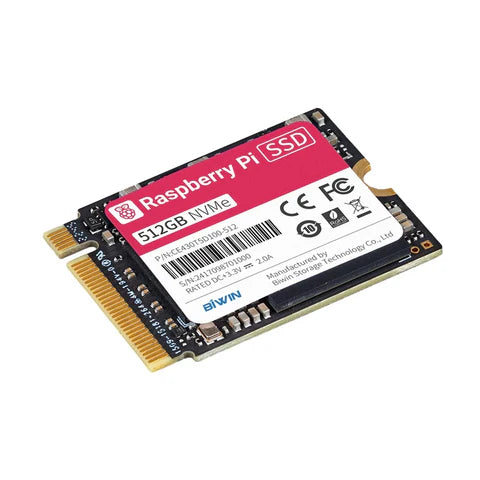

• 512 GB NVMe solid-state drive included

• PCIe 2.0 x1 interface compatibility

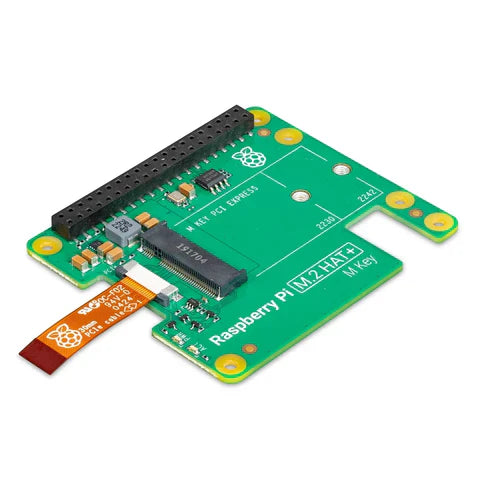

• Support for Raspberry Pi M.2 HAT+

• 4 KB random read performance up to 40K IOPS

• 4 KB random write performance up to 70K IOPS

• Alternative boot storage to microSD

• Approved for Raspberry Pi 5 platform


• Storage Type: NVMe solid-state drive

• Storage Capacity: 512 GB

• Interface: PCIe 2.0 ×1

• Form Factor: M.2

• Random Read Performance: 40K IOPS at 4 KB

• Random Write Performance: 70K IOPS at 4 KB

• Operating Voltage: 3.3 V DC

• Power Supply Source: PCIe interface via M.2 HAT+

• Preloaded Data: None

• Supported Accessories: Raspberry Pi M.2 HAT+

• Supported Platform: Raspberry Pi 5
