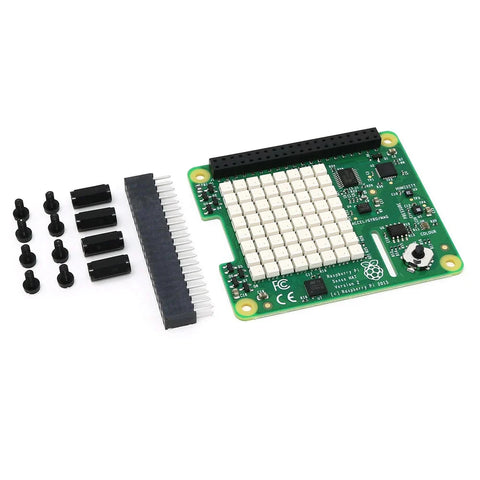

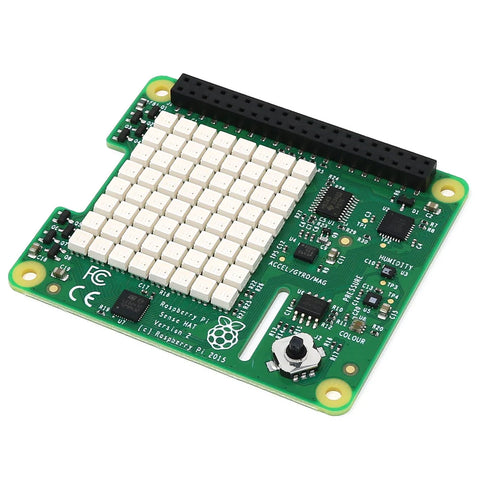

Raspberry Pi Sense HAT V2 Sensor Expansion Board – Environmental Sensors

The Raspberry Pi Sense HAT V2 is a sensor expansion board designed for programming education and environmental interaction using Raspberry Pi computers. It integrates multiple sensors for motion, orientation, position, and environmental measurement, originally developed for the Astro Pi educational program aboard the International Space Station. The board is powered directly by the connected Raspberry Pi and operates through the 40-pin GPIO header. An officially supported Python library provides direct access to all onboard sensors, the LED matrix, and the joystick. It is compatible with all Raspberry Pi models featuring a 40-pin GPIO interface and is suitable for educational, research, and sensing applications.

• 40-pin GPIO interface for power and data connection

• Integrated gyroscope, accelerometer, and magnetometer

• Temperature, humidity, and barometric pressure sensors

• Color and brightness sensing capability

• 8×8 RGB LED matrix for sensor data display

• Five-direction joystick for user interaction

• Powered directly by the Raspberry Pi board

• Official Python library for sensor and display control

• Compatible with all Raspberry Pi boards with 40-pin GPIO

• Supports data logging and real-time sensor monitoring

• Operating Voltage: 5V DC

• Power Interface: Raspberry Pi 40-pin GPIO

• Pressure Sensor: STMicro LPS25HB

• Pressure Range: 260 to 1260 hPa

• Pressure Resolution: 24-bit

• Pressure Sensor Temperature Range: 0 to 65 °C ±2 °C

• Temperature Resolution: 16-bit

• Humidity Sensor: STMicro HTS221

• Humidity Range: 0 to 100 %RH

• Humidity Sensor Temperature Range: 15 to 40 °C ±0.5 °C

• Humidity Resolution: 16-bit

• IMU: STMicro LSM9DS1

• IMU Components: Accelerometer, Gyroscope, Magnetometer

• Acceleration Range: ±16 g

• Magnetometer Range: ±16 gauss

• Gyroscope Range: ±2000 dps

• IMU Resolution: 16-bit per axis

• Color Sensor: TCS3400 RGB and Ambient Light Sensor

• Display: 8×8 RGB LED Matrix

• User Input: Five-button Joystick

• Joystick Functions: Up, Down, Left, Right, Center

• Communication Interface: I2C

• Compatibility: Raspberry Pi with 40-pin GPIO header

• Raspberry Pi Sense HAT V2 Schematics
• Raspberry Pi Sense HAT V2 Documentation
• Raspberry Pi Sense HAT V2 Mechanical drawings
