Raspberry Pi NFC

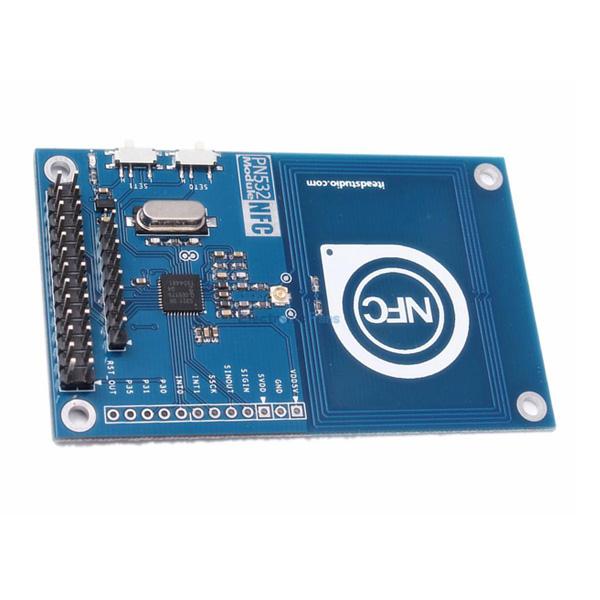

PN532 NFC module, as its name implies, is based on PN532 chip and used for 13.56MHz near field communication. The module is equipped with onboard antenna, thus no external antenna coil is needed. It is compatible with SPI, IIC and UART interface for communication. With NFC library support for Arduino and Raspberry Pi offered by us, it is quite convenient for development of products with NFC functions.

• IC NXP PN532
• Operating Voltage 3.3V
• Power Supply Voltage 3.3~5.5V
• Max Supply Current 150mA
• Working Current(Standby Mode) 100mA
• Working Current(Write Mode) 120mA
• Working Current(Read Mode) 120mA
• Indicator PWR
• Interface SPI Interface, Std Raspberry Pi 20pins Interface
