Raspberry Pi High Quality Camera Module – 12MP Sony IMX477 Sensor

The Raspberry Pi High Quality Camera Module is a 12MP imaging solution designed for advanced vision and imaging applications. It features the Sony IMX477 sensor, delivering high-resolution still images and video with low noise and accurate color reproduction. The module supports interchangeable C- and CS-mount lenses, providing flexibility for different focal lengths and use cases. Built for stable performance, it integrates seamlessly with Raspberry Pi boards through the CSI interface. It is suitable for computer vision systems, scientific imaging, robotics, and educational research projects.

Check out the different lens we have for this camera:

• 16mm 10MP Telephoto Lens
• 6mm 3MP Wide Angle Lens

• Sony IMX477 12MP CMOS Image Sensor

• CSI Interface Compatible with Raspberry Pi Boards

• Support for Interchangeable C and CS Lenses

• High-Resolution Still Image and Video Capture

• Low-Noise Sensor Design for Stable Imaging

• Rigid PCB with Metal Lens Mount

• Official Raspberry Pi Camera Software Support

• Sensor: Sony IMX477, 12.3MP
• Resolution: 4056 × 3040 pixels
• Pixel Size: 1.55µm × 1.55µm
• Lens Mount: C- and CS-mount compatible
• Output Format: RAW10
• Shutter Type: Rolling shutter
• Connector: 22-pin CSI-2 for Raspberry Pi interface
• IR Cut Filter: Integrated (removable with modification)

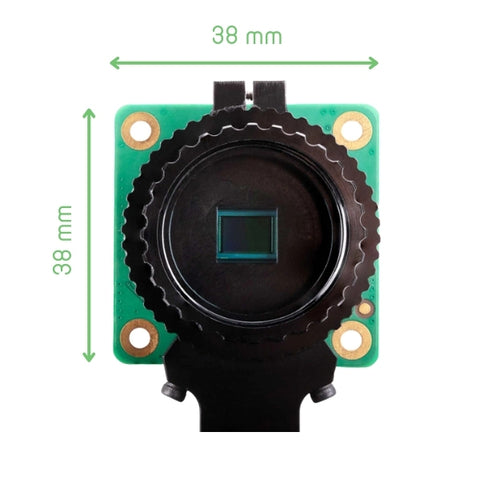

• Dimensions: 38mm × 38mm × 18.4mm (without lens)

• Raspberry Pi High Quality Camera 3D Model
• Raspberry Pi 4 Mounting Plate for High Quality Camera
• Raspberry Pi Camera Documentation

• Voltaat Learn -  Raspberry Pi 5 Tutorials
• Voltaat Youtube Channel
• HOW TO USE the Raspberry Pi High Quality Camera

• Raspberry Pi High Quality Camera Getting Started Guide - First Pictures and Videos
