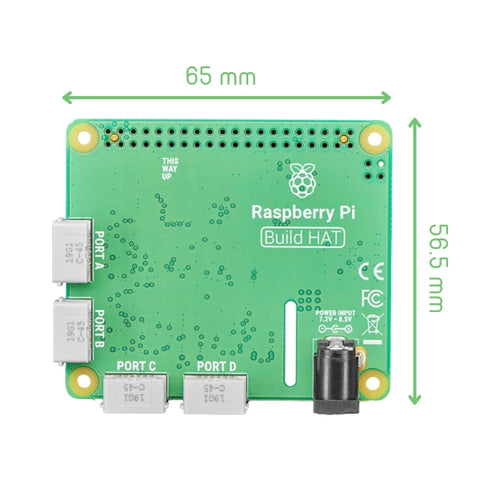

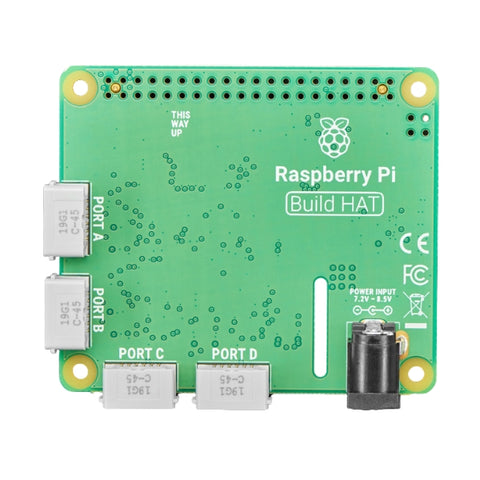

Raspberry Pi Build HAT – LEGO Robotics Control Board

The Raspberry Pi Build HAT is an add-on board designed to enable direct control of LEGO Technic motors and sensors using Raspberry Pi computers. It connects via the standard 40-pin GPIO header and supports up to four devices from the LEGO Education SPIKE Portfolio, including motors with integrated encoders and compatible sensors. Designed for stable operation, it ensures reliable communication and full compatibility with Raspberry Pi models that feature a 40-pin header. The board supports Python-based control and integrates smoothly with standard Raspberry Pi peripherals. It is well suited for robotics development, engineering education, and structured prototyping projects.

• 40-pin GPIO HAT interface for Raspberry Pi

• Support for four LEGO Technic motors and sensors

• Compatibility with LEGO Education SPIKE Portfolio

• Integrated motor encoder position feedback

• Python-based control library support

• Bottom-mounted components for compact stacking

• Compatibility with Raspberry Pi 5, 4, and Zero

• Product Type: Raspberry Pi HAT Expansion Board

• Interface: 40-pin GPIO Header

• Operating Voltage: 5V DC

• Motor And Sensor Ports: 4 × LEGO Technic Connectors

• Supported Devices: LEGO Technic Motors And Sensors

• Encoder Support: Integrated Motor Encoder Feedback

• Control Method: Python Software Library

• Mounting Method: Direct GPIO Or Ribbon Cable

• Operating System: Raspberry Pi OS

• Compatibility: Raspberry Pi 5, Raspberry Pi 4, Raspberry Pi Zero
