5 Inch Touch Screen Display – Raspberry Pi Compatible

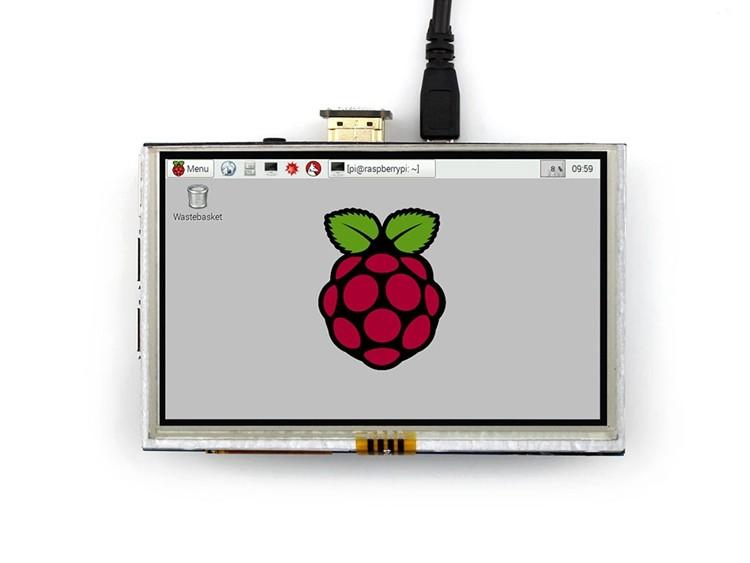

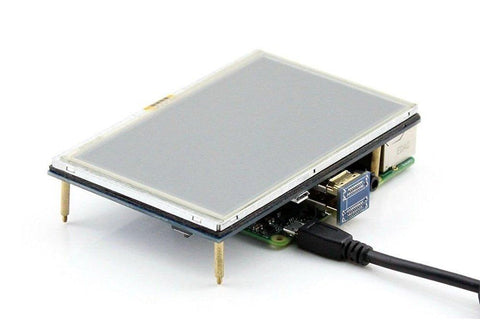

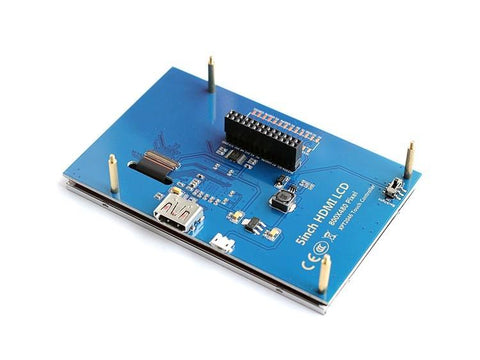

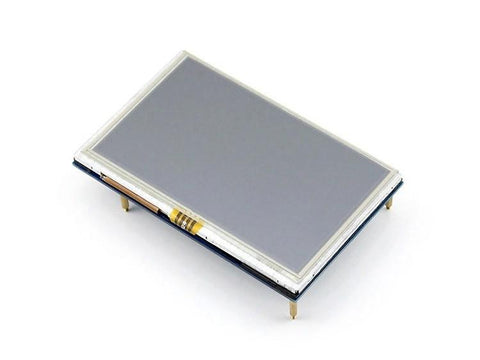

The Waveshare 5 Inch Touchscreen LCD is an interactive display designed for Raspberry Pi–based embedded systems. It features a full-color 800 × 480 resolution LCD with touch input, enabling direct user interaction without external peripherals. The display connects to the Raspberry Pi through an included adapter board that manages power delivery and signal conversion. It is engineered for stable performance and reliable operation with supported Raspberry Pi models running an updated Raspbian OS. The display is suitable for standalone interfaces, embedded control panels, and educational or prototyping applications.

• Backlight Control for Reduced Power Consumption

• Direct Raspberry Pi Compatibility via Plug-in Design

• HDMI Display Interface without Additional I/O

• Touch Panel Requiring Dedicated GPIO Connection

• Driver Support for Raspbian-Based Systems

• ENIG Surface Plating for Improved Conductivity

• 800 × 480 Display Resolution

• 120 × 78 mm Compact Module Size


• Display Type: LCD with Capacitive Touch Panel

• Display Size: 5 Inch

• Resolution: 800 × 480

• Display Interface: HDMI

• Touch Interface: GPIO

• Backlight Control: Supported

• Operating Voltage: 5 V DC

• Surface Finish: ENIG (Immersion Gold)

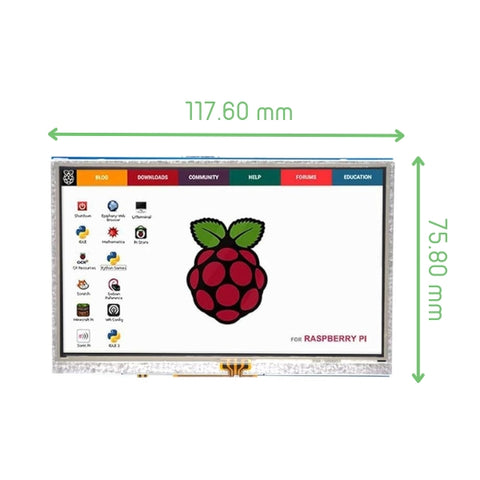

• Dimensions: 120 × 78 mm

• Driver Support: Raspbian

• Compatibility: Raspberry Pi (All Revisions Except First-Gen Model B)
