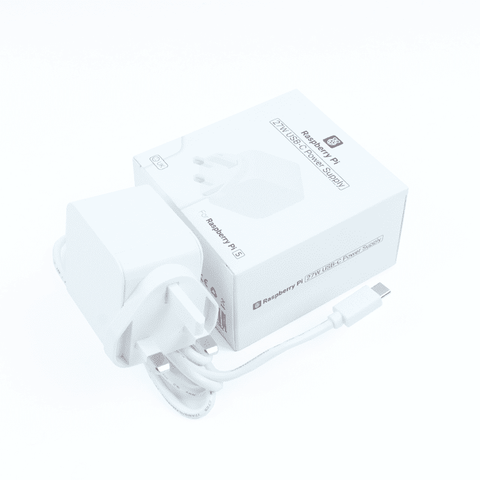

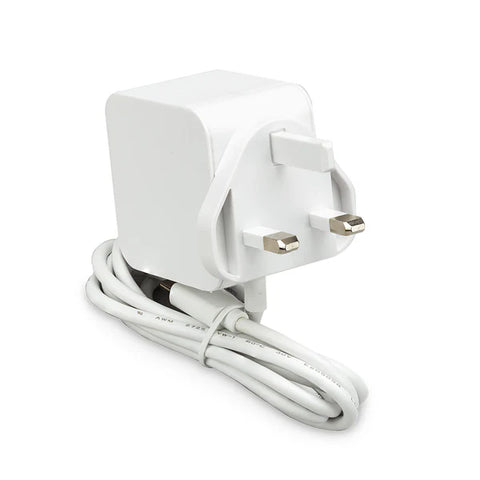

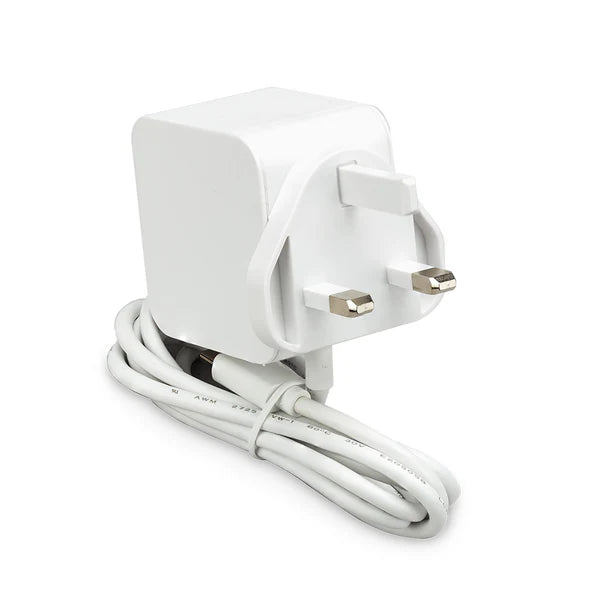

Raspberry Pi 5 Power Adapter - 27W (USB-C)

  • Sale
  • Regular price 79 QAR
  • Product ID: VT-1977
    1 in stock


    • USB type C plug, for the latest Raspberry Pi 5 and Raspberry Pi 4 Model B
    • Fixed Main Adapter (NOT interchangeable)
    • Three AC Plug Types:
      • Type G (UK Type)
      • Type C (EU Type)
    • Two Color Choices:
      • Black
      • White
    • 1.2 meter 18 AWG captive cable
    • Short circuit, over-current, and over-voltage protection
    • 5.1V output, 5.0A max output, perfect for long cable and high ampere usage
    • Support Power Delivery (PD)
    • 27W Max Output Power
    • Universal AC power input, 100-240VAC, 50/60Hz
    • Efficiency: 72% to 81%
    • An official PSU from the Raspberry Pi Foundation



    • Output:
      • Output via USB-C: 5A@5.1V, 3A@9V, 2.25A@12V, 1.8A@15V
      • Maximum power: 27W
      • Load regulation: ±5%
      • Line regulation: ±2%
      • Ripple & noise: 120mVp-p
      • Rise time: 100ms maximum to regulation limits for DC outputs
      • Turn-on delay: 3000ms maximum at nominal input AC voltage and full load
      • Protection:
        • Short circuit protection
        • Overcurrent protection
        • Over-temperature protection
      • Efficiency:
        • 81% minimum (output current from 100%, 75%, 50%, 25%)
        • 72% minimum at 10% load
      • Output cable: 1.2m (18AWG)
      • Output connector: USB Type-C
    • Input:
      • Voltage range:
        • 100-240VAC (rated)
        • 96-264VAC (operating)
      • Frequency: 50/60Hz ±3Hz
      • Current: 5A maximum
      • Power consumption (no load): 0.075W maximum
      • Inrush current: No damage shall occur and the input fuse shall not blow
