Raspberry Pi 5 Basic Kit – Single Board Computer

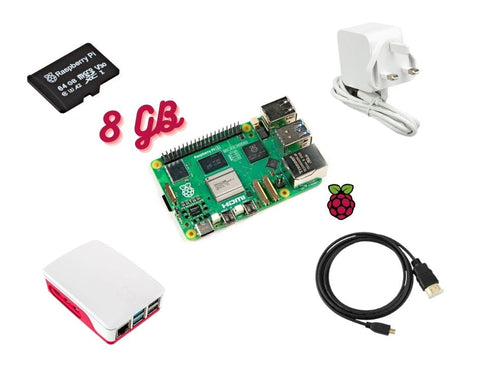

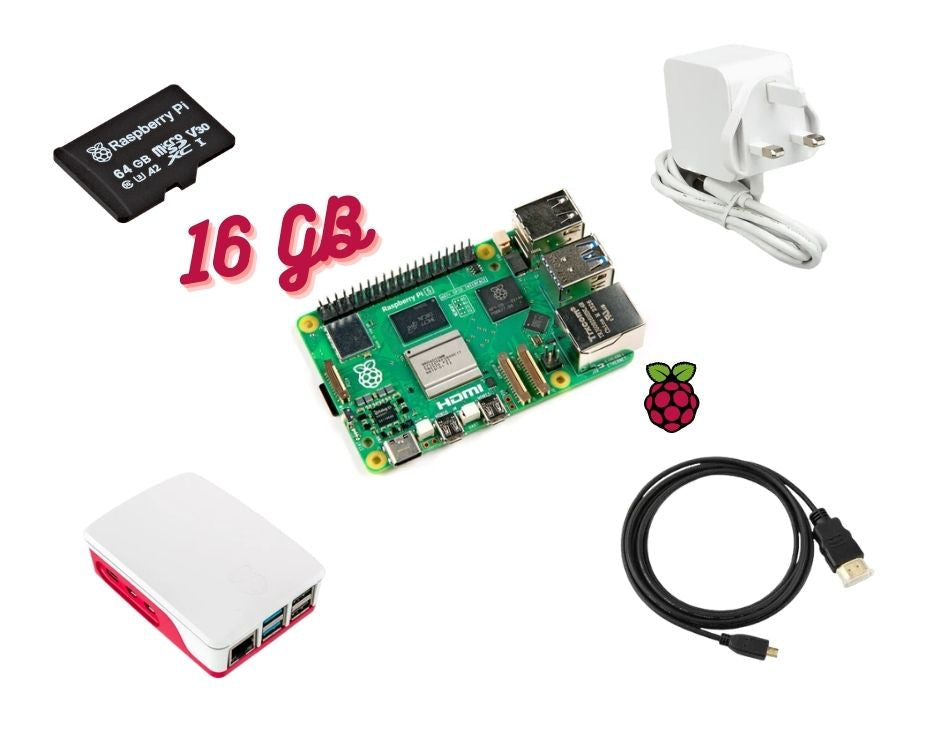

The Raspberry Pi 5 Basic Kit is a single board computer kit designed for education, prototyping, and embedded computing applications. It includes a Raspberry Pi 5 Model B with selectable memory options of 1GB, 2GB, 4GB, 8GB, or 16GB, providing scalable performance for different workloads. The kit is supplied with a 27W USB-C power adapter, an official Raspberry Pi 5 case with an integrated cooling fan, and a Micro HDMI to HDMI cable for display connectivity. A 64GB Micro SD card is included for operating system installation and storage. The kit ensures stable operation and broad hardware compatibility for development, testing, and academic use.

• 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU
• cryptography extensions
• 512KB per-core L2 caches
• 2MB shared L3 cache
• VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
• Dual 4Kp60 HDMI® display output with HDR support
• 4Kp60 HEVC decoder
• LPDDR4X-4267 SDRAM
• Dual-band 802.11ac Wi-Fi®
• Bluetooth 5.0 / Bluetooth Low Energy (BLE)
• microSD card slot, with support for high-speed SDR104 mode
• 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
• 2 × USB 2.0 ports
• Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
• 2 × 4-lane MIPI camera/display transceivers
• PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
• 5V/5A DC power via USB-C, with Power Delivery support
• Raspberry Pi standard 40-pin header
• Real-time clock (RTC), powered from external battery
• Power button


• Board type: Single-board computer

• Model: Raspberry Pi 5 Model B

• Processor: Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76

• Operating voltage: 5 V DC via USB-C

• Memory options: 1 GB, 2 GB, 4 GB, 8 GB, or 16 GB LPDDR4X

• GPIO: 40-pin header with digital interfaces
• USB ports: 2 × USB 3.0, 2 × USB 2.0
• Display output: Dual micro HDMI ports
• Video support: HDMI output via micro HDMI
• Ethernet: Gigabit Ethernet
• Wireless: Dual-band WiFi 802.11ac, Bluetooth 5.0
• Camera and display: MIPI CSI and DSI connectors
• Primary storage: 64 GB microSD card included
• Expansion: microSD card slot
• Power supply: 27 W USB-C power adapter
• Cooling system: Official case with integrated fan
• Thermal management: Active cooling support
• HDMI cable: Micro HDMI to standard HDMI Type A, 1 m
• Enclosure: Official Raspberry Pi 5 case, red and white
• Operating system: Raspberry Pi OS support
• Usage: Embedded systems, software development, education, prototyping
• Compatibility: Standard Raspberry Pi accessories
