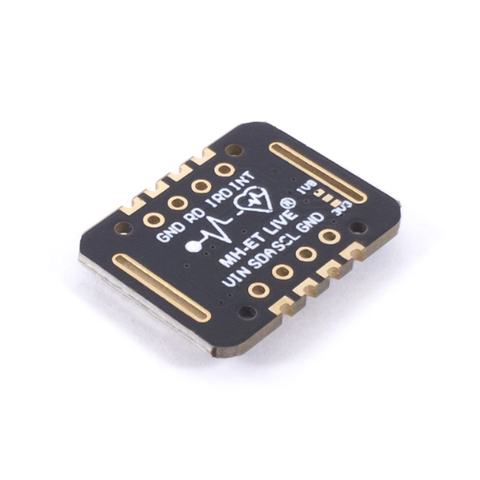

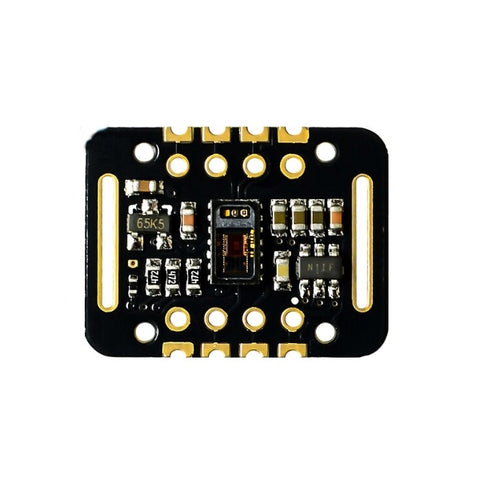

MAX30102 Pulse Oximeter And Heart Rate Sensor – I2C Interface

The MAX30102 Pulse Oximeter and Heart Rate Sensor is a compact optical biosensing module designed for measuring blood oxygen saturation (SpO2) and heart rate in embedded and wearable applications. It integrates red and infrared LEDs, photodetectors, optical components, and low-noise analog front-end electronics with ambient light rejection. Operating from a 1.8V core supply and 3.3–5V LED supply, it communicates via a standard I2C interface. The device supports software shutdown with zero standby current, making it suitable for battery-powered systems such as wearable devices, fitness monitors, and mobile platforms.

• Integrated Red and IR LEDs (660 nm / 880 nm)

• Onboard Photodetector and Optical Elements

• Low-Noise Analog Front-End with Ambient Light Rejection

• I2C Digital Communication Interface

• 1.8V Core Supply Operation

• 3.3–5V LED Supply Compatibility

• Software Shutdown with Zero Standby Current

• Compact PCB Design 20.3 × 15.2 mm

• Wide Operating Temperature Range

• Suitable for Wearable and Mobile Devices

• Core Operating Voltage: 1.8V DC

• LED Supply Voltage: 3.3–5V DC

• Communication Interface: I2C

• LED Peak Wavelength (Red): 660 nm

• LED Peak Wavelength (IR): 880 nm

• Operating Temperature Range: -40°C to +85°C

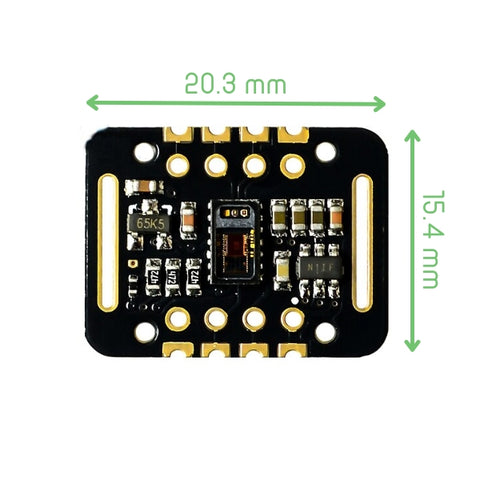

• Module Dimensions: 20.3 × 15.2 mm
• Weight: 1.1 g

• Shutdown Mode Current: 0 µA (software shutdown)

• Application Type: SpO2 and Heart Rate Monitoring
