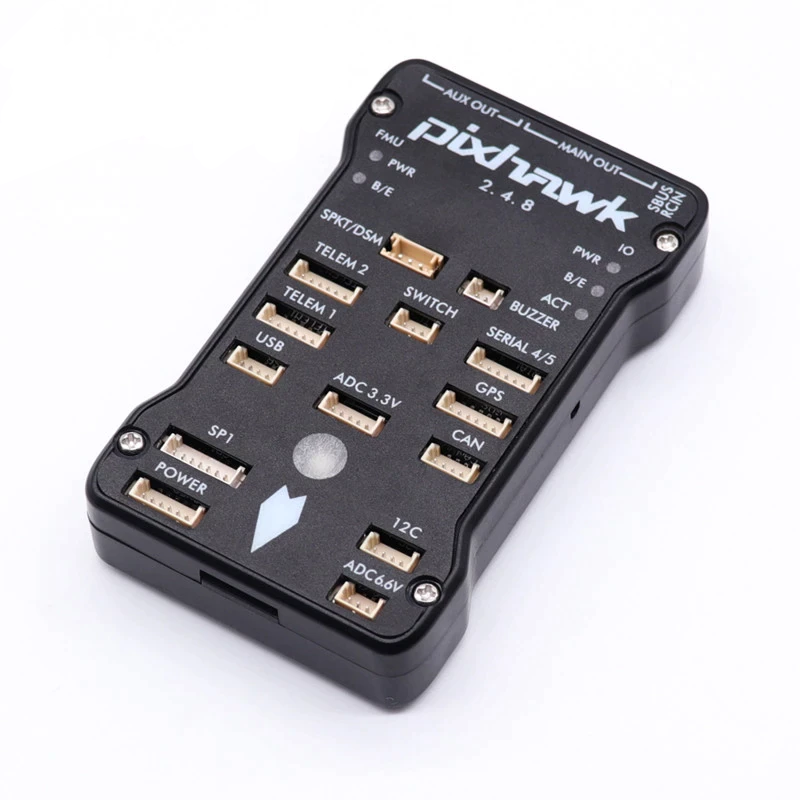

Pixhawk 2.4.8 Drone Flight Controller PX4

The Pixhawk 2.4.8 Drone Flight Controller PX4 advanced 32-bit CortexM4 ARM high performance processor, can run RTOS NuttX real-time operating system Bus interface (UART, I2C, SPI, CAN) Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control Provide automatic and manual mode Provide redundant power input and fault transfer function.

It Supports 8 RC channel with 4 serial port. Various user interfaces are available for programing, reviewing logs, even some apps for smartphones & tablets. It detects and configures all its peripherals automatically.

The benefits of the Pixhawk 2.4.8 flight controller system include a Unix/Linux-like programming environment, completely new autopilot functions. Sophisticated scripting of missions and flight behavior, and a custom PX4 driver layer ensuring tight timing across all processes.

• Advanced 32 bit CortexM4 ARM high-performance processor.
• 32 bit STM32STMF100 failsafe co-processor.
• Multiple flight modes including self-stability, height-set, hover, sports, freestyle, circling, following, return, guidance, and automatic.
• Switchable flight modes for Helicopter, Fixed-wing, Multi-rotor, and Model Car.
• Multi-sound buzzer interface.
• Abundant connectivity options for additional peripherals such as GPS, I2C, and SPI
• 14 PWM/servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible).
• Supports DSM Spektrum receiver.
• Unix/Linux-like programming environment.
• Automatic configuration of peripherals.
• Unix/Linux-like programming environment.
• Unix/Linux-like programming environment.
• Supports sophisticated scripting of missions and flight behavior.
• Custom PX4 driver layer ensuring tight timing across all processes.
