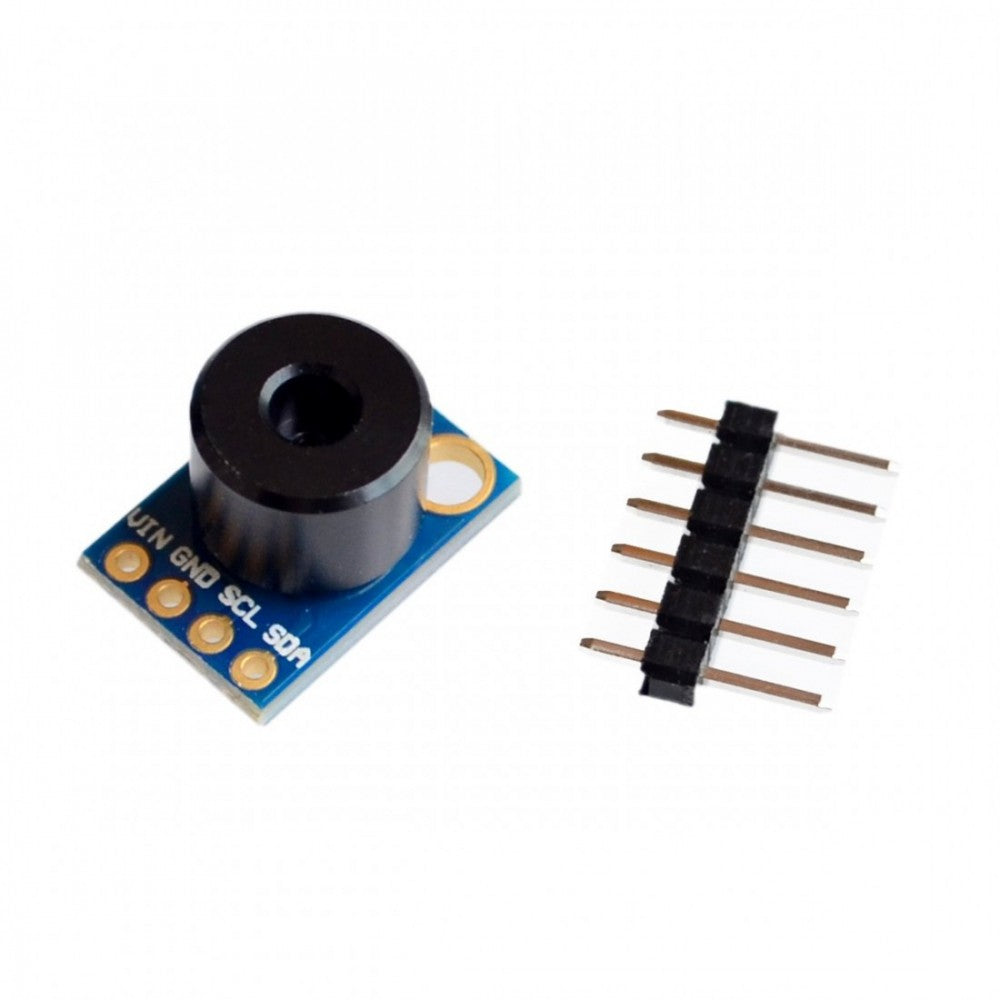

MLX90614 Non-Contact Infrared Temperature Sensor – long range

The MLX90614 is a non-contact infrared temperature sensor designed for accurate object and ambient temperature measurement. It integrates an IR thermopile sensor, low-noise amplifier, 17-bit ADC, and DSP inside a TO-39 package for stable and precise readings. Operating at 3–5 V with I2C communication, the breakout board allows easy integration with microcontrollers. It supports a wide sensing range from −70 °C to 380 °C while maintaining reliable performance in harsh environments. This sensor is suitable for embedded systems, automation, and thermal monitoring applications.

• Non-contact infrared temperature sensing

• Integrated thermopile sensor and DSP

• 17-bit ADC for high measurement resolution

• I2C digital communication interface

• Wide object temperature range up to 380 °C

• Low operating current consumption

• Stable operation in industrial environments

• Breakout board for rapid prototyping


• Operating Voltage: 3–5 V DC

• Operating Current: 2 mA

• Communication Interface: I2C

• Sensor Type: Infrared thermopile

• Object Temperature Range: −70 °C to +380 °C

• Ambient Operating Temperature: −40 °C to +85 °C

• Sensing Distance: 4–10 cm

• Package Type: TO-39

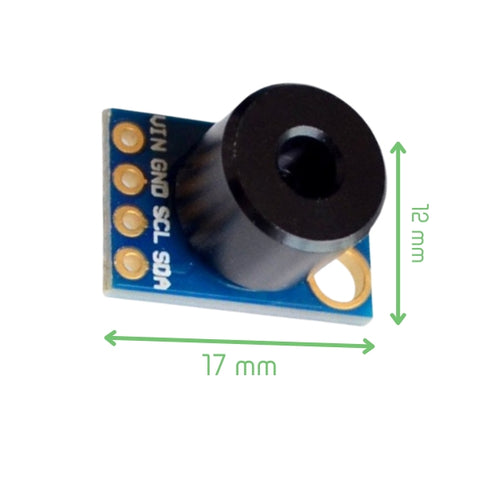

• Board Type: Breakout module

• MLX90614 Datasheet
• Tutorial from Adafruit
• Adafruit MLX90614 library for Arduino, Github
• MLX90614 Non-Contact Infrared Temperature Sensor 3D Model

• MLX90614 Non-contact Infrared Temperature Sensor with Arduino.
