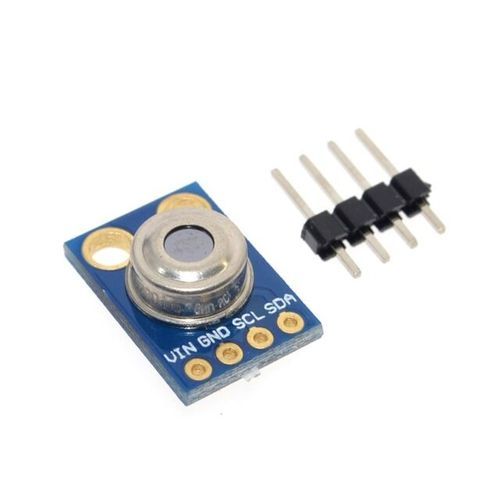

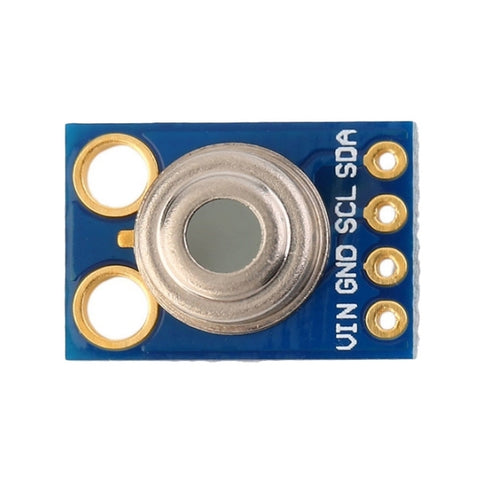

MLX90614 Non-Contact Infrared Temperature Sensor – Short Range I2C

The MLX90614 is an infrared thermometer designed for non-contact temperature measurements of objects and ambient surfaces. It integrates an IR-sensitive thermopile detector and a signal-conditioning ASIC within a TO-39 metal package, including a low-noise amplifier, 17-bit ADC, and onboard DSP to deliver high accuracy and resolution. This breakout board version allows simple interfacing with microcontrollers using the I2C protocol and operates from a 3 V to 5 V supply. It is well suited for embedded systems, automation, and thermal monitoring applications requiring contactless sensing.

• Non-contact infrared temperature measurement

• Integrated thermopile sensor and signal-conditioning ASIC
• 17-bit ADC with onboard DSP processing

• I2C digital communication protocol

• Wide object temperature sensing range

• Measures both object and ambient temperature

• Low operating current consumption

• 3 V to 5 V supply voltage compatibility

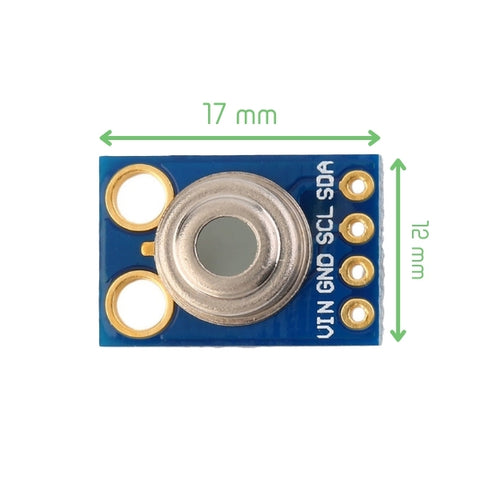

• Compact breakout board design

• Factory calibrated for accurate readings


• Operating Voltage: 3–5 V DC

• Operating Current: 2 mA

• Communication Protocol: I2C

• Sensor Operating Temperature: −40 °C to +125 °C

• Object Temperature Range: −70 °C to +380 °C

• Sensing Range: Up to 1 cm

• Sensor Package: TO-39 metal can

• Measurement Type: Non-contact infrared

• ADC Resolution: 17-bit

• Calibration: Factory calibrated

• MLX90614 Datasheet
• Adafruit MLX90614 library for Arduino, Github
• MLX90614 Non-Contact Infrared Temperature Sensor 3D Model
• Bracket for MLX90614


• Tutorial from Adafruit
• MLX90614 Non-contact Infrared Temperature Sensor with Arduino.

• How to Connect MLX90614 Infrared Thermometer to Raspberry Pi Pico W: MicroPython Tutorial!
