DOIT ESP32 DEVKIT I/O Expansion Shield

  • Sale
  • Regular price 15 QAR
  • Product ID: VT-4074
    20 in stock

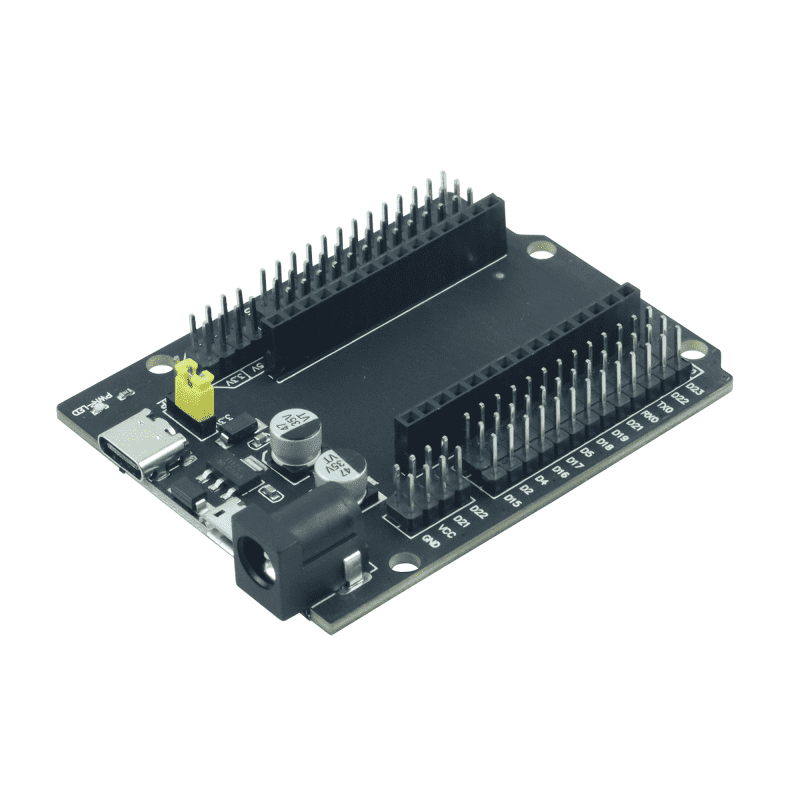

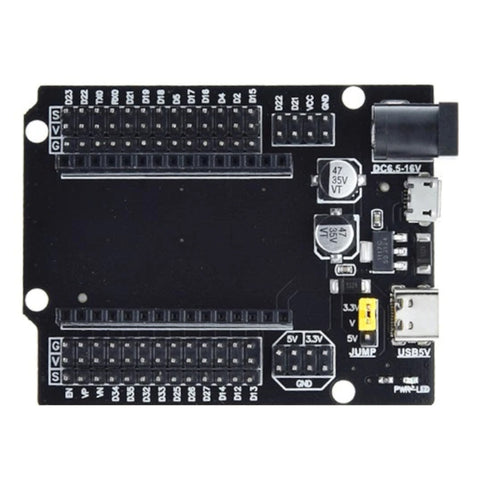

    This ESP32 expansion board is a versatile and convenient tool designed for prototyping projects with ease. It features header pins with power and ground rails, allowing for easy connections to various components. Suitable for ESP32 with DOIT ESP32 DEVKIT.

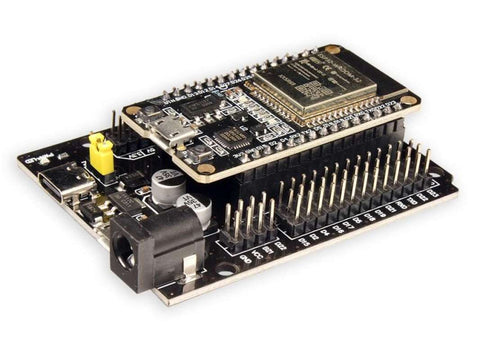

    • Designed for DOIT ESP32 DEVKIT Module.
    • Power supply:
      • 7-12V on DC jack.
      • microUSB Connector.
      • USB C Connector.
    • Selectable voltage level on I2C and SPI pinout
    • All pins are accompanied with VCC and GND for easy sensor connections
    • On-board Regulator : 5V~1A.
    • Header Connector Pitch: 2.54mm.
    • Power-On LED Indicator.
    • M3 screw holes on corners of board.

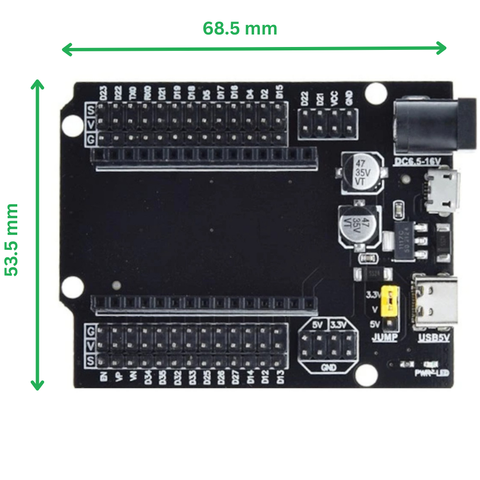

    • Board dimension : 65 x 55 mm.
    • Note: ESP32 Development Module Not Included, to purchase separately.
