MG90S Metal Gear Servo -Positional Rotation

  • Sale
  • Regular price 25 QAR
  • Product ID: VT-1699
    21 in stock

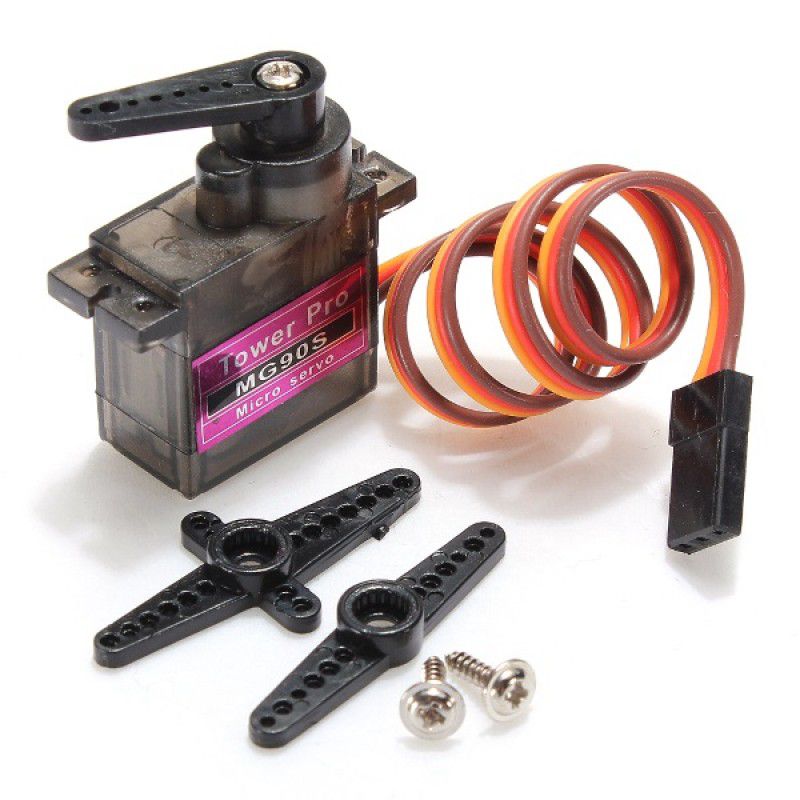

    This is a low-cost micro-size's metal gear RC servo with 1.80kg.cm holding torque (at 4.8V). It is a perfect solution for student robotic projects who build arms or linkages.  The advantage of the RC servo over the DC brush motor is the ability to control its rotation angle.

    • Origin: China
    • Compatible with Arduino Servo library.
    • Metal gears
    • Operating Voltage: 4.8 - 6VDC
    • Speed at 4.80V(no load): 0.1 s/60°
    • Torque at 4.80V : 1.8 kg.cm (~0.1765 N.m)
    • Size: 22.3 x 11.8 x 28.3mm
    • Weight: 16g
    • Rotation angle: 180 degree
    • Wiring:
      • Brown = GND
      • RED = 5V
      • Orange = Signal
