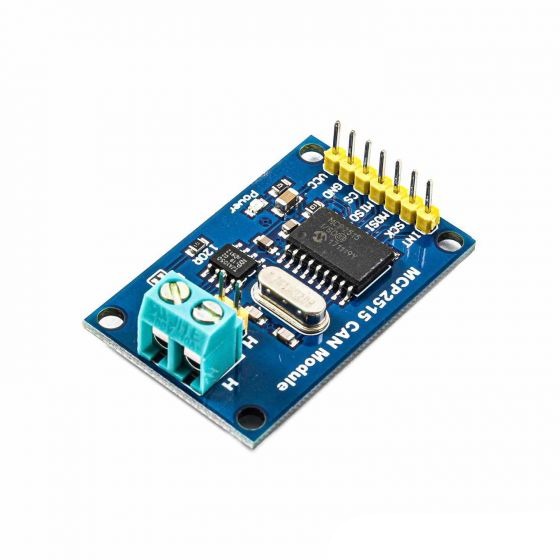

MCP2515 CAN Bus Module with TJA1050 Receiver, SPI Interface

The MCP2515 CAN Bus Module with TJA1050 Receiver is a serial interface adapter designed to enable CAN bus communication for microcontroller systems. It uses the MCP2515 CAN controller with SPI interface and the TJA1050 transceiver to convert between CAN bus signals and microcontroller logic levels. The module supports standard and extended CAN frames, operates at 5 V DC, and provides reliable data transmission for automotive, industrial automation, and embedded system applications. It is compatible with Arduino, Raspberry Pi, and other MCU platforms requiring CAN communication.

• MCP2515 CAN Controller | SPI interface for microcontroller communication

• TJA1050 Transceiver | Converts CAN bus signals to MCU logic levels

• Voltage Requirement | Operates at 5 V DC

• CAN Frame Support | Standard and extended frames compatible

• Data Rate | Up to 1 Mbps CAN bus transmission

• Microcontroller Compatibility | Supports Arduino, Raspberry Pi, and other MCU platforms

• Communication Interface | SPI interface for easy integration with digital systems

• Industrial Applications | Suitable for automotive, industrial automation, and embedded systems

• Product Type | CAN Bus Module with SPI Interface

• Controller | MCP2515 CAN controller

• Transceiver | TJA1050 CAN transceiver

• Operating Voltage | 5 V DC

• Communication Interface | SPI for microcontroller integration

• CAN Frame Support | Standard (11-bit) and extended (29-bit) frames

• Data Rate | Up to 1 Mbps

• Operating Temperature | -40 °C to 85 °C

• Connector Type | Pin headers for CAN_H, CAN_L, VCC, GND, and SPI signals

• Microcontroller Compatibility | Arduino, Raspberry Pi, and other MCU platforms

• Dimensions | Typical PCB size 32 × 25 mm

• Power Consumption | Typical 20 mA at 5 V DC
