LCD Keypad Shield for Arduino

The LCD Keypad Shield for Arduino combines a character LCD display with integrated push buttons for user input.
It typically features a 16×2 alphanumeric LCD and multiple navigation keys connected through a single analog input.
The shield stacks directly onto compatible Arduino boards using standard headers.
It enables menu navigation, parameter adjustment, and real-time data display in embedded projects.
Common applications include control panels, monitoring systems, and educational development kits.

• 16×2 Character LCD Display for text and numeric output

• Integrated Push Buttons for user interface control

• Single Analog Pin Key Reading simplifying input management

• Adjustable Contrast Control via onboard potentiometer

• Arduino-Compatible Shield Design for direct stacking

• Backlight Support for improved visibility

• Product Type | LCD Interface Shield

• Display Type | 16×2 Character LCD

• Interface | Parallel (HD44780 compatible)

• Button Type | Tactile push buttons

• Logic Voltage | 5 V (Arduino compatible)

• Control Method | Digital I/O and analog input

• Mounting Type | Arduino shield stackable

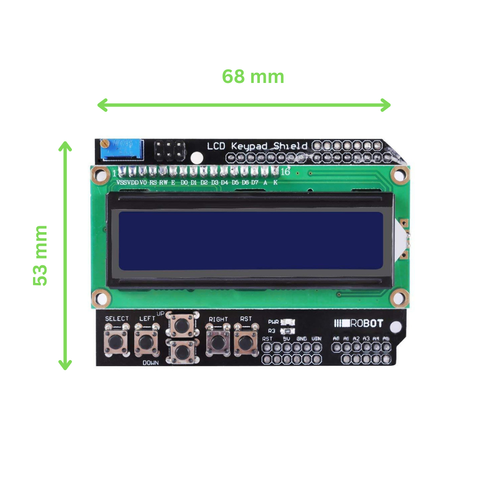

• Dimensions | 68 mm × 53 mm
