IRF520 MOSFET Driver Module

  • Sale
  • Regular price 9 QAR
  • Product ID: VT-1786
    We do not currently have an estimate for arrival date. Contact us for urgent custom order!
    This product is available.

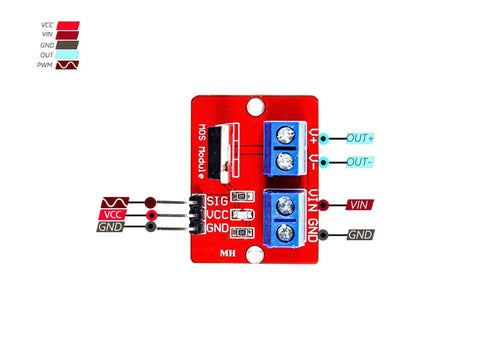

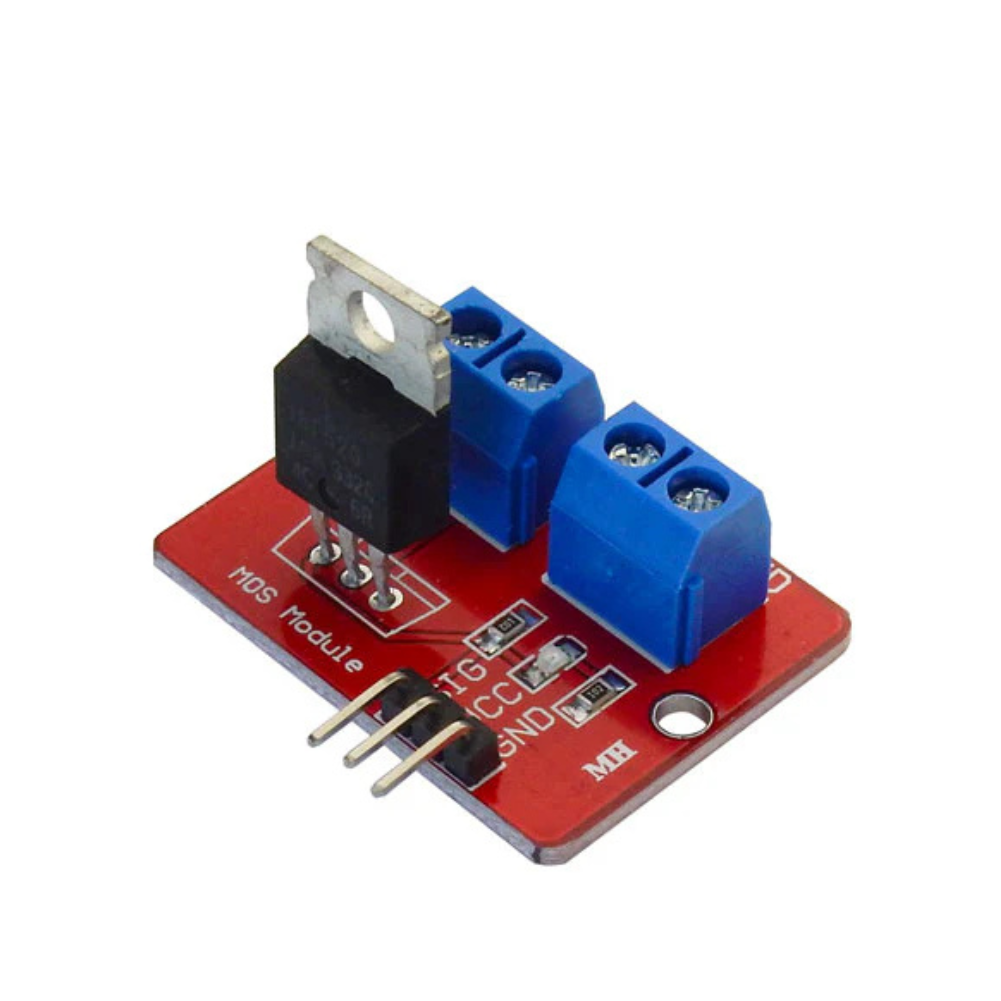

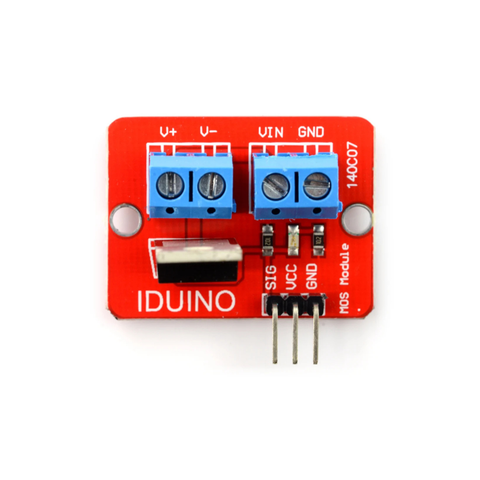

    This little module (HCMODU0083) is a breakout board for the IFR520 MOSFET transistor. The module is designed to switch heavy DC loads from a single digital pin of your microcontroller. Its main purpose is to provide a low cost way to drive a DC motor for robotics applications, but the module can be used to control most high current DC loads. Screw terminals are provided to interface to your load and external power source. An LED indicator provides a visual indication of when your load is being switched.

    Model number: HCMODU0083
    Weight: 10g

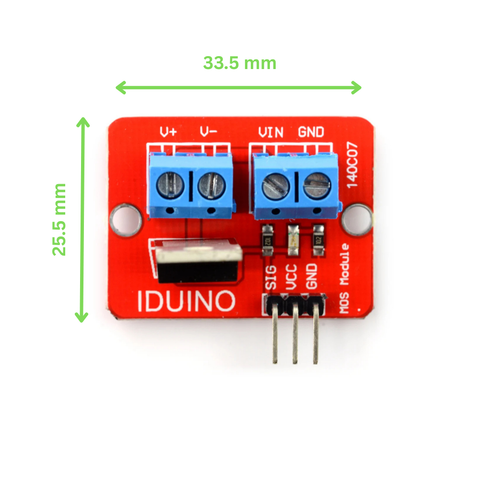

    Size: 33.5 x 25.5mm
    Max load (drain) current: <5A
    Output load voltage :0-24V
    Input Switching Voltage: Suitable for 5V microcontrollers.
