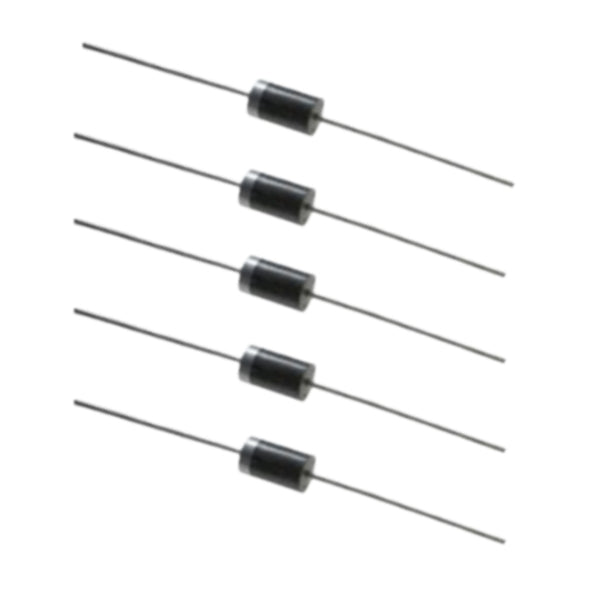

General Purpose Diode 3A 600V – 1N5406 (5 pcs)

The 1N5406 is a general-purpose rectifier diode designed for high-current power conversion and protection applications. It supports up to 3A average forward current and a peak reverse voltage of 600V, making it suitable for power supplies, DC rectification, polarity protection, and industrial electronics. Built with a durable axial-lead package, it provides stable electrical performance and reliable heat dissipation during continuous operation. Ideal for repair work, prototyping, power regulation circuits, and educational electronic projects.

• 3A average forward rectified current

• 600V peak repetitive reverse voltage

• High surge current capability

• Axial lead DO-201AD package

• Low forward voltage drop

• Reliable thermal performance

• Suitable for AC to DC rectification

• Reverse polarity protection support

• Stable operation under continuous load

• High durability silicon construction

• Compatible with power supply circuits

• Suitable for industrial electronic applications

• Fast recovery characteristics for general-purpose use

• Wide operating temperature range
• Pack includes 5 diode pieces

• Diode Type: General Purpose Rectifier Diode

• Model: 1N5406

• Package Type: DO-201AD Axial Lead

• Average Forward Current: 3A

• Peak Repetitive Reverse Voltage: 600V

• Forward Voltage Drop: 1.0V @ 3A

• Surge Forward Current: 200A

• Power Dissipation: 6.25W

• Reverse Current: 10µA @ Rated Voltage

• Operating Junction Temperature: -55°C to +150°C

• Mounting Type: Through Hole

• Polarity: Cathode Band Marked

• Material: Silicon

• Quantity: 5 pcs

• Applications: Rectification, Protection, Power Circuits
