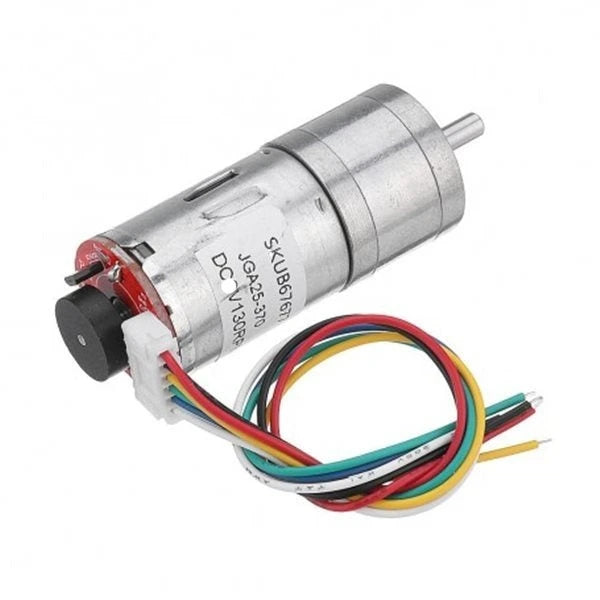

Geared Brushed DC Motor with Encoder (12V 130RPM)

  • Sale
  • Regular price 49 QAR
  • Product ID: VT-4061
    Coming Soon! Approximate arrival date: 2024-12-10
    This product is available.


  • This product is a DC gear motor that contains a Magnetic Encoder solder to the end leads of the motor. These motors will use magnetic hall effect sensor to determine the position of the motor. Excellent for position and control systems or related projects.

    Requires a 5VDC Micro-controller to interpret control and position.

    Specification:

    • Operating Voltage: 12 VDC
    • Speed: 130 RPM
    • Shaft diameter: 4 mm
    • Length: 12 mm
    • Connection Wire Length: 20 cm
    • No-Load Speed: 100RPM @ 0.13A
    • Max Efficiency: 1 Kg.cm/80 RPM @ 0.5A
    • Max Power: 3 Kg.cm/55 RPM @ 1A
    • Stall Torque: 6.5 Kg.cm @ 3A
    • Reduction Ratio: 1:75
    • Hall Effect Sensor Resolution: 823.1 PPR
