Freenove ESP32-S3-WROOM CAM Development Board with Wi-Fi & Bluetooth

The Freenove ESP32-S3-WROOM CAM Development Board is a compact microcontroller platform featuring an integrated camera, Wi-Fi, and Bluetooth connectivity for embedded vision and IoT applications. It is powered by a dual-core 32-bit ESP32-S3 processor operating at up to 240 MHz, with 16 MB Flash and 8 MB PSRAM for image processing, wireless communication, and edge computing tasks. The board supports development using MicroPython and C, includes comprehensive project tutorials, and is compatible with standard ESP32 development environments. Typical applications include smart cameras, wireless monitoring, robotics, automation, and connected embedded systems.

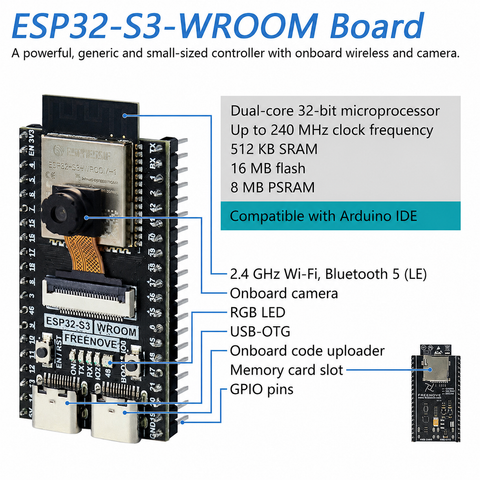

• ESP32-S3 Dual-Core Processor – Operates at up to 240 MHz for embedded control, wireless communication, and edge computing applications.
• 16 MB Flash Memory – Provides onboard non-volatile storage for firmware, application code, and data.
• 8 MB PSRAM – Expands working memory for image processing, buffering, and memory-intensive applications.
• Integrated Camera Interface – Supports onboard camera functions for image capture, video streaming, and computer vision projects.
• 2.4 GHz Wi-Fi and Bluetooth 5 – Enables wireless networking, Bluetooth Classic, and Bluetooth Low Energy (BLE) connectivity.

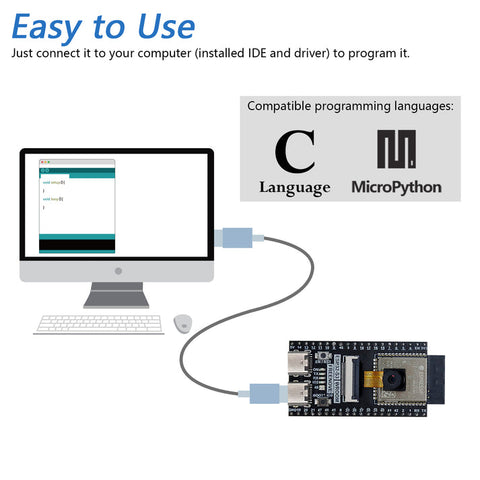

• MicroPython and C Support – Compatible with MicroPython, ESP-IDF, Arduino IDE, and C-based development workflows.
• microSD Card Support – Includes a microSD card slot for local file storage, logging, and multimedia applications.

• Brand | Freenove

• Model | ESP32-S3-WROOM CAM Development Board

• Microcontroller | ESP32-S3 dual-core 32-bit processor

• Maximum Clock Frequency | 240 MHz

• Flash Memory | 16 MB

• PSRAM | 8 MB

• Wireless Connectivity | 2.4 GHz Wi-Fi, Bluetooth 5 (BLE and Classic Bluetooth)

• Camera | Integrated camera module with onboard camera interface

• Storage Expansion | microSD card slot (1 GB microSD card included)

• Programming Languages | MicroPython, C

• Development Environment Compatibility | ESP-IDF, Arduino IDE, MicroPython

• Programming & Power Interface | USB Type-C
