ESP8266 ESP-12F Chip

  • Sale
  • Regular price 9 QAR
  • Product ID: VT-1212
    9 in stock


  • Description

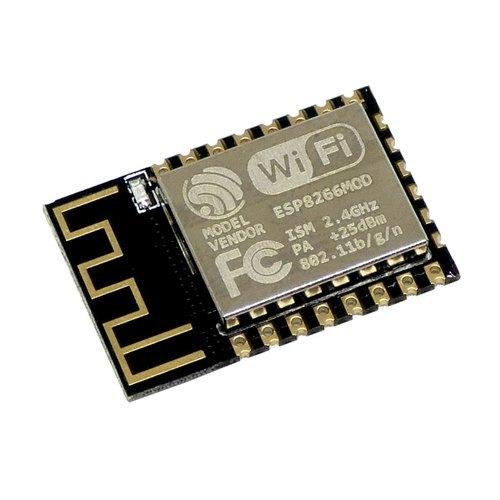

    The ESP-12F is a WiFi module based on ESP8266, with built-in 32Mbit Flash, in the small SMD22 package. There're also onboard PCB antenna and metal shield. In short, it's a small form factor and fairly high cost effective WiFi module.

    With the pre-flashed AT firmware, you can control the module through UART AT commands easily. The module integrates MCU inside, supports other developments like Lua/Micropython/Arduino to achieve flexible and fast prototyping, make it easy to integrate the module into IoT applications.

    Technical Details

    • 802.11b/g/n Wi-Fi SOC
    • Integrated Tensilica L106 ultra-low-power 32-bit micro MCU, run at 80 MHz and 160 MHz frequency, supports RTOS
    • Built-in 1-ch 10 bit high precision ADC
    • Supports UART/GPIO/ADC/PWM/I2C
    • SMD22 package
    • Integrated Wi-Fi MAC/ BB/RF/PA/LNA
    • Supports multi sleep modes, deep sleep current as low as 20uA
    • UART baudrate up to 4Mbps
    • Embedded Lwip protocol stack
    • Supports STA/AP/STA+AP operation mode
    • Supports Smart Config (APP) / AirKiss (WeChat), one key networking
    • Supports UART local firmware upgrade and/or remote firmware upgrade (FOTA)
    • AT commands for getting started fast
    • Supports secondary development, integrated Windows / Linux environment
