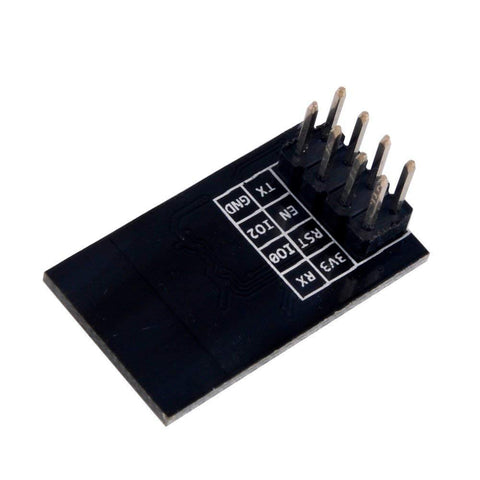

The ESP8266 WiFi Module is a self contained SOC with integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. The ESP8266 is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor. Each ESP8266 module comes pre-programmed with an AT command set firmware, meaning, you can simply hook this up to your Arduino device and get about as much WiFi-ability as a WiFi Shield offers (and that’s just out of the box)! This module has a powerful enough on-board processing and storage capability that allows it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime.
- +19.5dBm output power in 802.11b mode
- 1MB Flash Memory
- 802.11 b/g/n
- A-MPDU & A-MSDU aggregation & 0.4ms guard interval
- Integrated low power 32-bit CPU could be used as application processor
- Integrated PLLs, regulators, DCXO and power management units
- Integrated TCP/IP protocol stack
- Integrated TR switch, balun, LNA, power amplifier and matching network
- Power down leakage current of <10uA
- SDIO 1.1 / 2.0, SPI, UART
- Standby power consumption of < 1.0mW (DTIM3)
- STBC, 1×1 MIMO, 2×1 MIMO
- Wake up and transmit packets in < 2ms
- Wi-Fi Direct (P2P), soft-AP
