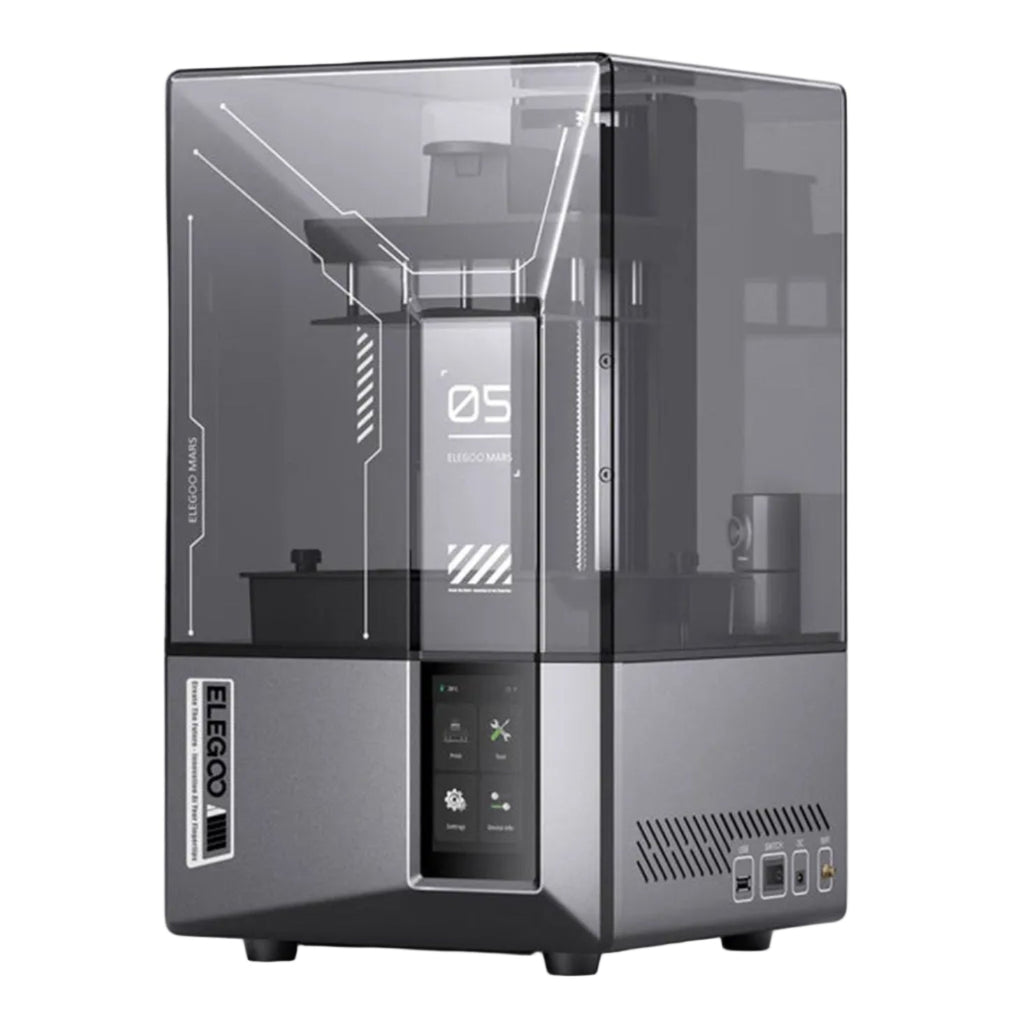

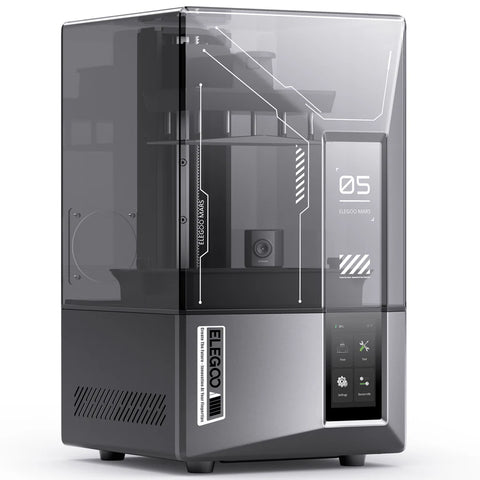

Elegoo Mars 5 Ultra 9K - Resin 3D printer

The Elegoo Mars 5 Ultra is a 7-inch 9K MSLA resin 3D printer featuring 18um XY resolution and advanced tilt-release technology for speeds up to 150 mm/h. It includes an AI camera for monitoring, auto-leveling, and intelligent sensors to detect residues or resin shortages. Designed for ease of use, it features a 4.0-inch touchscreen and Wi-Fi connectivity.

• Display & Resolution: 7-inch 9K monochrome LCD with 8520 x 4320 resolution and 18um XY precision for high-detail, smooth prints.
• Speed & Technology: Uses "tilt-release technology" to peel layers, enabling fast printing (up to 150 mm/h).
• Intelligence: Built-in AI camera monitors for print failures, warping, or empty builds.
• Smart Sensors: Automatic leveling, residue detection to prevent screen damage, and a resin shortage alarm.
• Build Volume: 153.36 x 77.76 x 165 mm³.
• User-Friendly Design: Quick-release build plate, laser-carved platform for better adhesion, and a 9H tempered glass screen protector.
• Connectivity: Wi-Fi for file transfer and management via Chitubox.

Build Volume

• 153.36 × 77.76 × 165 mm

Printing Speed

• Max 150 mm/h

Layer Thickness

• 0.01–0.2 mm

XY Resolution

• 18 μm (8520 × 4320)

Z-Axis Accuracy

• 0.02 mm

Printing Technology

• MSLA

Light Source

• COB Light Source (405 nm wavelength)

LCD Screen

• 7-inch 9K Mono LCD

• LCD Protector: 9H hardness tempered glass

Operation Screen

• 4.0-inch Capacitive Touch Screen

Connectivity

• Wi-Fi

• USB

System

• EL3D-4.0

Slicer Software

• Chitubox

Heat Dissipation

• 3 Copper Heat Pipes + Single Fan

Power Requirements

• 100–240 V AC, 50/60 Hz, 24V 3A

Printer Dimensions

• 260 × 268 × 451.5 mm

Net Weight

• 8.8 kg

Gross Weight

• 10.8 kg

Air Purifier

• USB connection unavailable

• Compatible with Mars Mate air purifier

Resin Compatibility

• Supports most resins on the market
  (Water-washable, standard, ABS-like, plant-based, etc.)

Other Functions

• Tilt Release Technology

• One-Click Automatic Leveling

• Self-Check & Overheat Protection

• AI Camera (Empty Build Plate Detection, Warp Detection, Real-Time Monitoring, Time-Lapse Recording)

• Smart Mechanical Sensor (Resin Shortage Alarm, Residue Detection Alarm, Leveling Failure Alarm)

• Power-Loss Resume Printing
