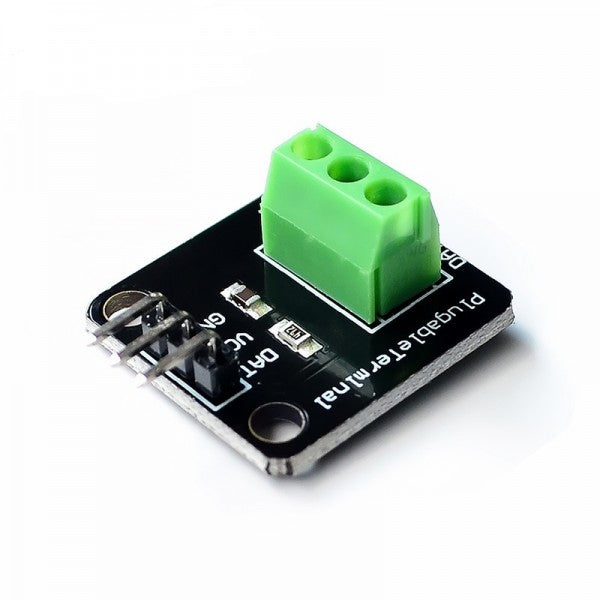

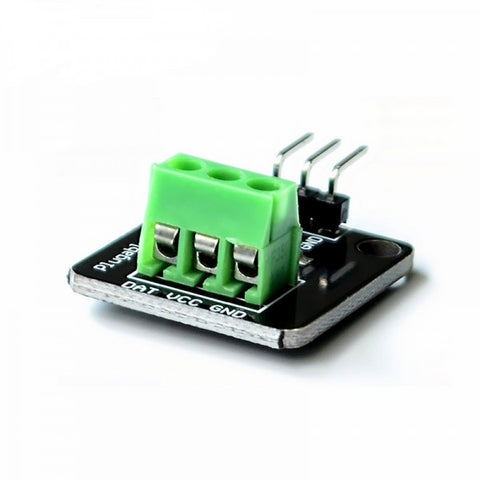

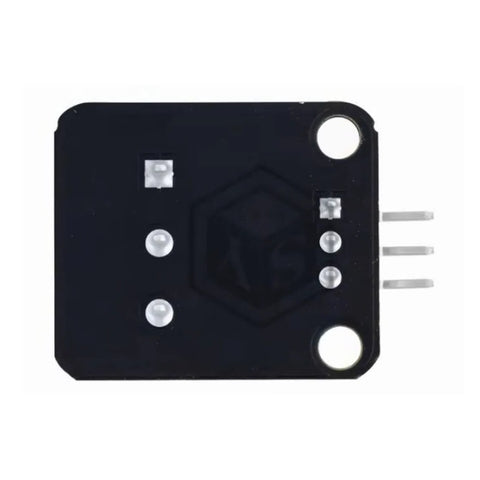

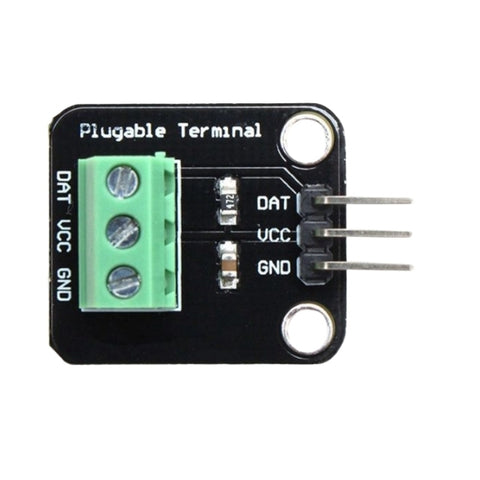

DS18B20 Temperature Sensor Adapter – Built-In 4.7kΩ Resistor

The DS18B20 Temperature Sensor Adapter is a compact interface board designed to simplify connecting a DS18B20 digital temperature sensor to microcontrollers. It integrates the required 4.7kΩ pull-up resistor directly on the PCB, eliminating the need for external components. The adapter ensures stable signal operation and clean wiring in embedded systems. Its small footprint makes it suitable for space-constrained projects. Ideal for temperature monitoring, data logging, and educational applications.

• Dedicated adapter for DS18B20 temperature sensors

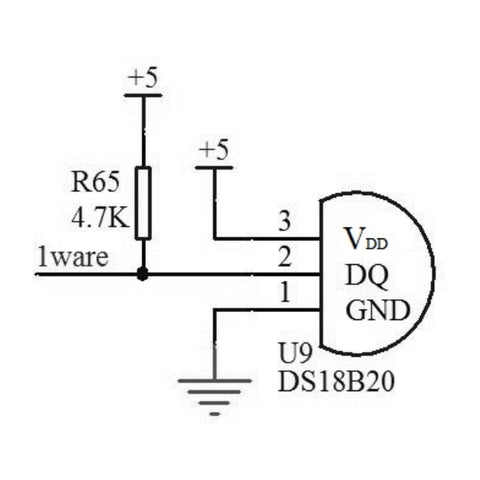

• Integrated 4.7kΩ pull-up resistor on PCB

• Simplified wiring with no external components

• Stable one-wire signal operation

• Compact PCB design for embedded projects

• Suitable for Arduino and similar microcontrollers

• Clean and organized sensor connections

• Ideal for prototyping and educational use

• Sensor type: DS18B20 digital temperature sensor interface

• Required resistor: 4.7kΩ pull-up (on-board)

• Signal protocol: One-Wire

• Operating voltage: Follows connected DS18B20 sensor

• PCB dimensions: 23 × 20.5 mm
• PCB material: FR-4

• Mounting type: Through-hole pins

• Application: Temperature sensing and monitoring modules
