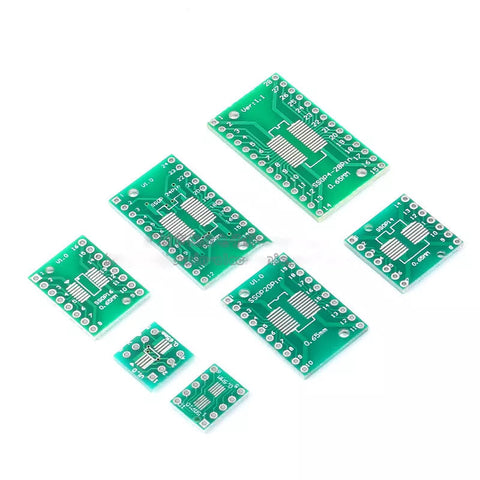

Double Side SMD SOP to DIP Adapter – SOP 8/10/14/16/20/24

The Double Side SMD SOP to DIP Adapter is a compact prototyping board designed for converting SOP surface-mount IC packages into standard DIP format for breadboards and through-hole development projects. It supports multiple SOP package sizes including SOP-8, SOP-10, SOP-14, SOP-16, SOP-20, and SOP-24, making it suitable for a wide range of integrated circuits. The double-sided layout provides flexible mounting options and simplifies soldering during prototyping and testing. Built with durable FR4 PCB material and standard 2.54 mm DIP spacing, it ensures reliable electrical connections and compatibility with common development platforms and soldering workflows. Ideal for circuit debugging, IC replacement, repair work, and electronics prototyping.

• Double-sided SOP to DIP adapter design

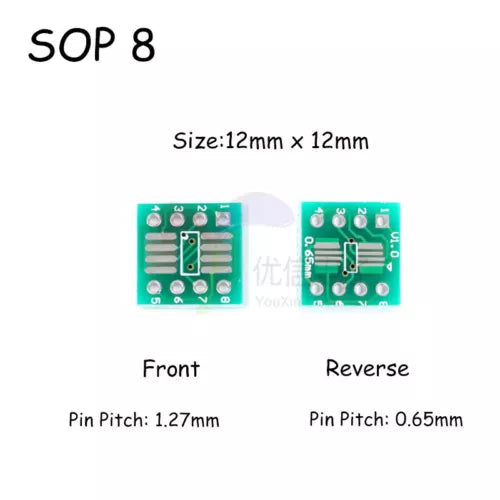

• Supports SOP-8 package ICs

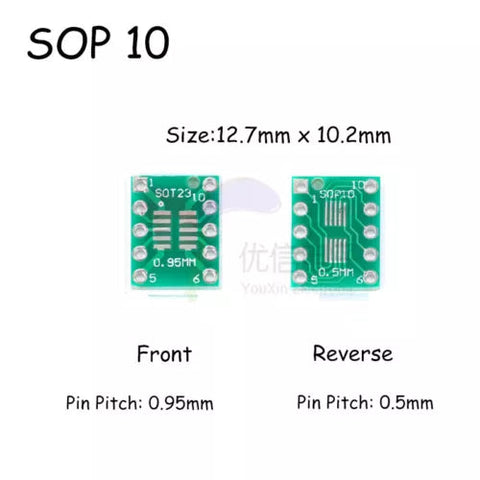

• Supports SOP-10 package ICs

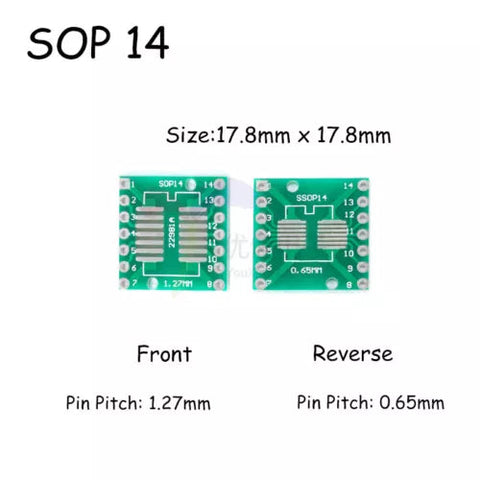

• Supports SOP-14 package ICs

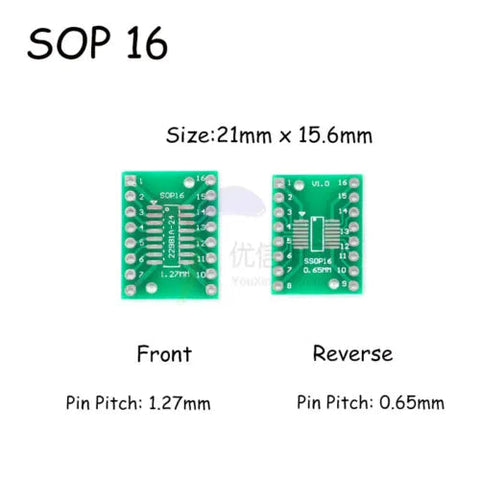

• Supports SOP-16 package ICs

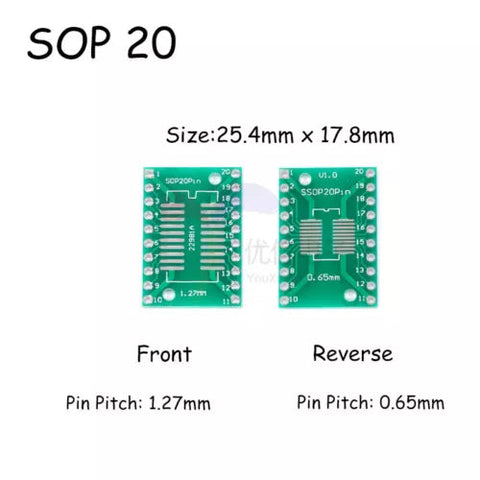

• Supports SOP-20 package ICs

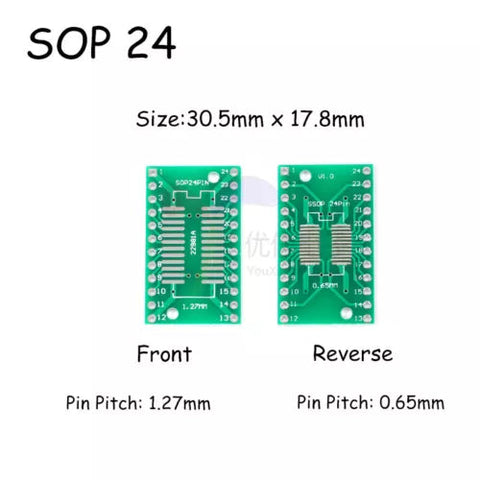

• Supports SOP-24 package ICs

• Standard 2.54 mm DIP pin spacing

• Compatible with breadboards and prototype PCBs

• Durable FR4 fiberglass PCB construction

• Clearly labeled pin numbering layout

• Suitable for SMD IC testing and debugging

• Simplifies surface-mount IC prototyping

• Compact size for embedded projects

• Compatible with manual soldering processes

• Board Type: Double Side SOP to DIP Adapter

• Supported Packages: SOP-8 / SOP-10 / SOP-14 / SOP-16 / SOP-20 / SOP-24

• Pin Pitch (SOP): 1.27 mm

• DIP Pin Spacing: 2.54 mm

• Board Material: FR4 Fiberglass PCB

• PCB Layers: Double-sided

• Surface Finish: HASL

• Mounting Type: Surface Mount to Through-Hole Conversion

• Compatible IC Types: SOP / SOIC Packages

• Application: Prototyping and IC Testing

• Board Color: Green

• Operating Temperature: -20°C to 85°C

• Soldering Method: Hand Soldering Compatible

• Reusable: Yes

• Dimensions: Approx. 50 × 40 mm

• SOIC to DIP Adapter for breadboarding
