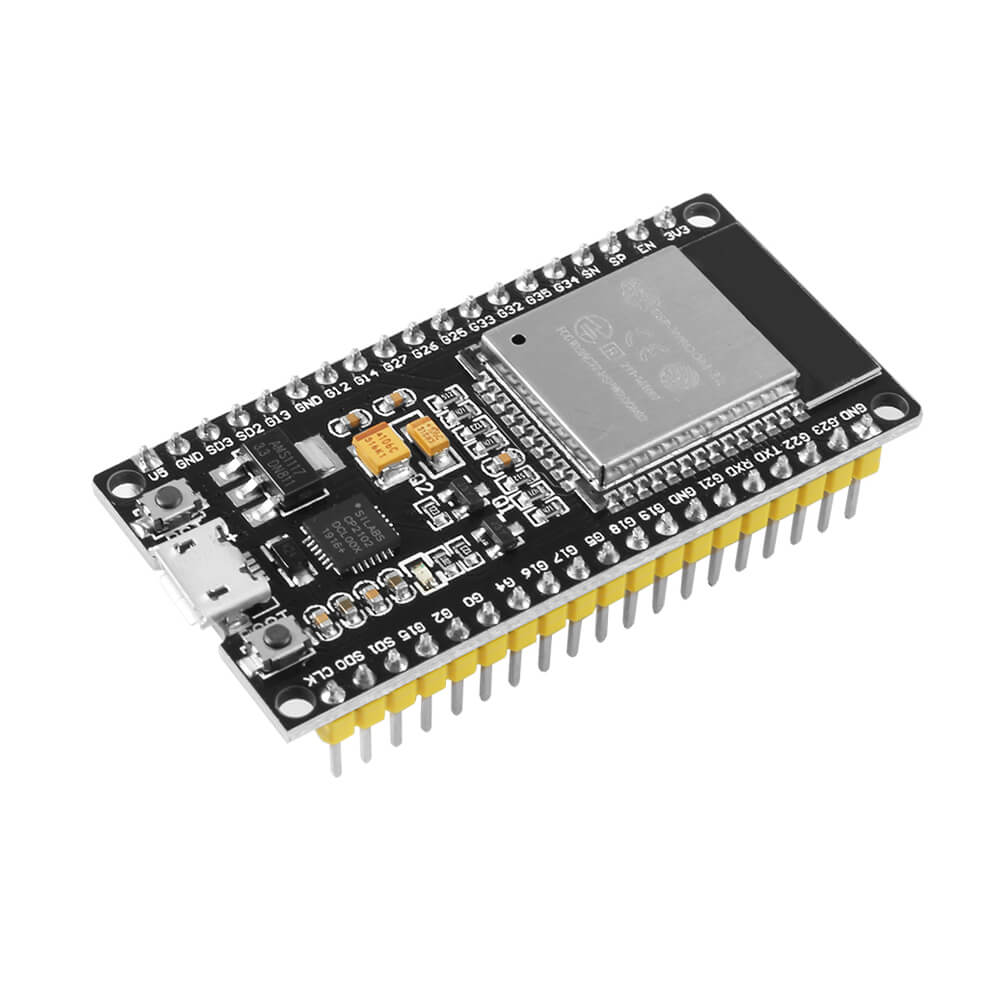

DOIT ESP32 DEVKIT V1 Development Board – Wi-Fi & Bluetooth (Micro USB)

The DOIT ESP32 DEVKIT V1 is a powerful development board built around the ESP32 from Espressif Systems. Designed for IoT, automation, and embedded system prototyping, it features a dual-core 32-bit Tensilica LX6 processor with integrated Wi-Fi and Bluetooth connectivity. The board provides access to multiple GPIO, ADC, DAC, PWM, and communication interfaces including UART, SPI, I²C, and CAN. It supports development using Arduino IDE, MicroPython, and Espressif SDK, making it suitable for both beginners and advanced developers. With onboard voltage regulation, boot/reset buttons, LED indicators, and an integrated antenna, it is a complete platform for connected projects.

• Dual-core ESP32 processor for high-performance applications
• Built-in Wi-Fi (2.4GHz) connectivity
• Bluetooth Classic and BLE support
• Multiple GPIO pins for digital interfacing
• 18 ADC channels for analog sensing
• 2 DAC channels for analog output
• PWM support for motor and LED control
• Micro USB interface for programming and power
• Onboard 3.3V voltage regulation
• Supports UART, SPI, I²C, and CAN protocols
• Compatible with Arduino IDE, MicroPython, and Espressif SDK
• Boot and reset buttons for easy firmware flashing
• Integrated PCB antenna
• Compact form factor for prototyping
• LED status indicators onboard

• Product Type: Development Board

• Model: DOIT ESP32 DEVKIT V1

• Core Processor: Dual-core 32-bit Tensilica LX6 MCU

• Wireless Module: ESP32

• Wireless Standards: IEEE 802.11 b/g/n, Bluetooth Classic, BLE

• Operating Voltage: 3.3V DC

• Input Voltage: 5V via Micro USB

• GPIO Pins: Multiple Digital I/O

• ADC Channels: 18

• DAC Channels: 2

• PWM Support: Yes

• Communication Interfaces: UART, SPI, I²C, CAN

• USB Interface: Micro USB (USB Type-Micro B)

• Programming Support: Arduino IDE, MicroPython, Espressif SDK

• Onboard Buttons: Boot and Reset

• LED Indicators: Yes

• Integrated Antenna: Yes

• Operating Temperature: -20°C to +70°C

• Dimensions: Approximately 52 × 28 mm

• Application: IoT Development and Embedded Prototyping

• 3D Model
• ESP32 SoC Datasheet
• SoM ESP-WROOM-32 Datasheet
• Project: LuaNode
• ESP-IDF: Espressif IoT Development Framework
• ESP32 DevKit v1 Explained for Beginners

• ESP32 DevKit v1 Explained for Beginners | Board Overview, Pins, Peripherals
