DS18B20 Waterproof Digital Temperature Sensor – Stainless Steel Probe

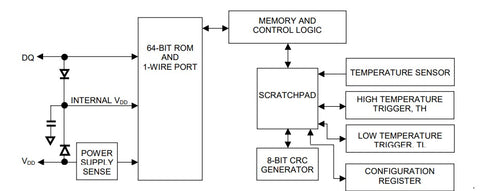

The DS18B20 is a digital temperature sensor designed for accurate temperature measurement using a 1-Wire communication interface. It supports 9-bit to 12-bit resolution and operates over a wide temperature range from -55 °C to +125 °C. The sensor features a stainless steel waterproof probe with a 100 cm cable, enabling reliable operation in humid or liquid environments. With a unique 64-bit serial code and optional parasite power mode, it allows multiple sensors to be connected on a single data line. It is suitable for embedded systems, industrial monitoring, and environmental sensing applications.

• Digital temperature sensor with 1-Wire interface

• 9-bit to 12-bit selectable resolution

• Wide temperature measurement range

• ±0.5 °C accuracy from -10 °C to +85 °C

• Stainless steel waterproof probe

• 100 cm insulated connection cable

• Unique 64-bit serial identification code

• Supports parasite power operation

• Multi-drop capability on single data line

• Suitable for liquid and outdoor environments


• Power supply: 3.0 V to 5.5 V

• Interface: 1-Wire digital communication

• Resolution: 9-bit to 12-bit programmable

• Operating temperature: -55 °C to +125 °C

• Storage temperature: -55 °C to +125 °C

• Accuracy: ±0.5 °C (-10 °C to +85 °C)

• Probe material: Stainless steel

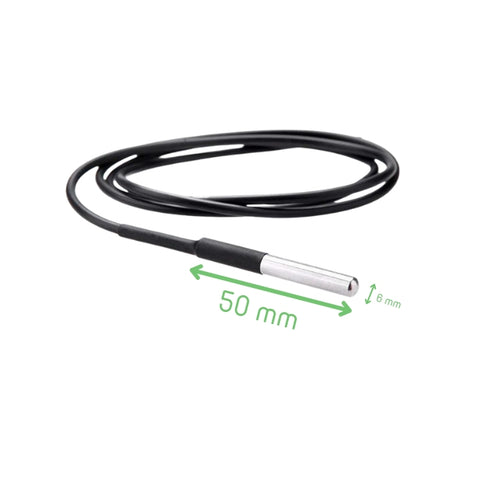

• Probe dimensions: 6 mm × 50 mm

• Cable length: 100 cm

• Output leads: Yellow (VCC), Red (DATA), Black (GND)
• Water resistance: Waterproof probe design

• Identification: Unique 64-bit serial code
