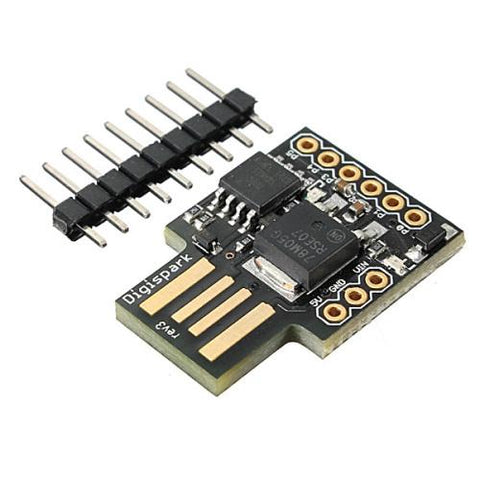

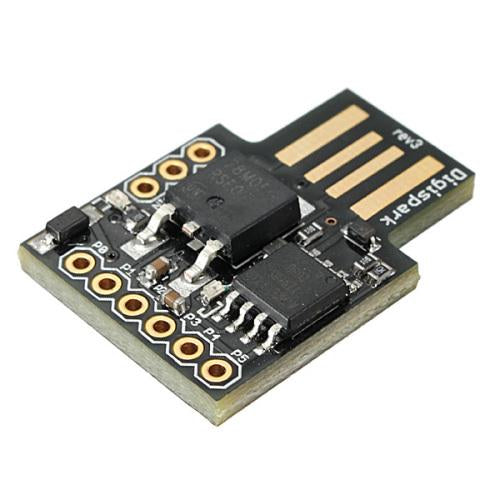

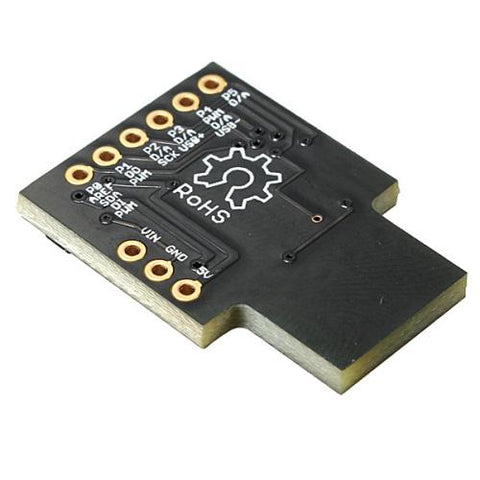

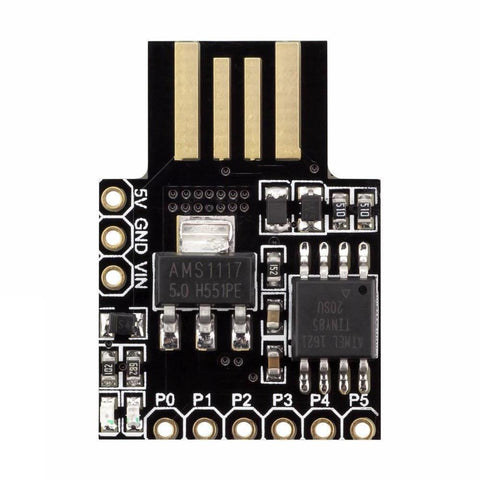

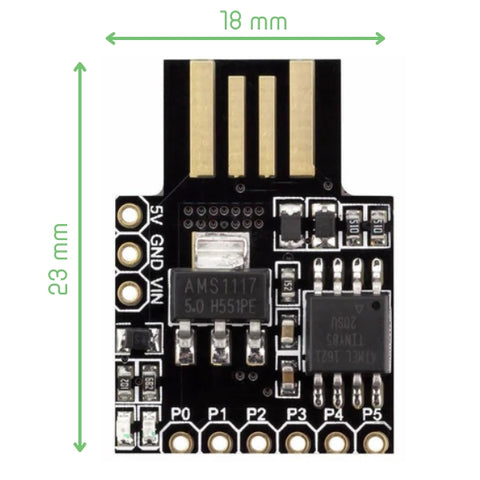

Digispark ATtiny85 USB Development Board

  • Sale
  • Regular price 19 QAR
  • 9 available


Description

The Digispark compatible developing board is an Attiny85 based microcontroller, board similar to the Arduino line, only cheaper, smaller, and a bit less powerful. With a whole host of shields to extend its functionality and the ability to use the familiar Arduino. IDE the Digispark is a great way to jump into electronics, or perfect for when an Ard. boards is too big or too much.

Features

  • 6 I/O Pins (2 are used for USB only if your program actively communicates over USB otherwise you can use all 6 even if you are programming via USB)
  • 8k Flash Memory (about 6K after bootloader)
  • ADC on 4 pins
  • Built-in USB(and serial debugging)
  • I2C and SPI(vis USI)
  • On-board 500ma 5V Regulator
  • Power LED and Test/ Status LED (on Pin0)
  • Power via USB or External Source or 7-16 v to 5 v (automatic selection).
  • PWM on 3 pins (more possible with Software PWM)
  • Support for the Arduino IDE 1.0+ (OSX / Win / Linux)
  • Weight: 4g
