DHT11 Digital Temperature and Humidity Sensor – 5V Output

The DHT11 is a low-cost digital temperature and humidity sensor designed for basic environmental monitoring applications. It integrates a capacitive humidity sensor and a thermistor to provide calibrated digital output through a single data pin. Operating at 5 V, it eliminates the need for analog inputs and simplifies system integration. The sensor updates readings every 2 seconds, ensuring stable and reliable measurements for non-time-critical applications. It is well suited for educational projects, microcontroller experiments, and simple weather monitoring systems.

• Digital temperature and humidity measurement

• Capacitive humidity sensing element

• Integrated thermistor for temperature sensing

• Single-wire digital data output

• 5 V operating voltage

• Calibrated digital signal output

• Low power consumption

• Compact sensor form factor

• Operating Voltage: 5 V DC

• Humidity Measurement Range: 20–90 %RH

• Humidity Accuracy: ±5 %RH

• Temperature Measurement Range: 0–60 °C

• Temperature Accuracy: ±2 °C

• Output Signal: Digital single-wire

• Sampling Rate: 1 reading per 2 s

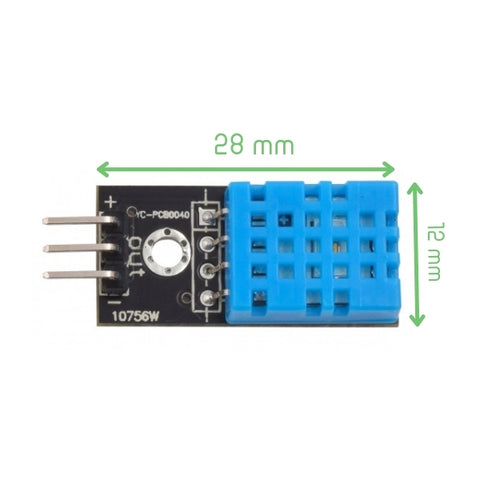

• Dimensions: 28 × 12 × 8 mm
