DFRobot micro: Breadboard micro:bit Expansion Board (Micro:bit Not Included)

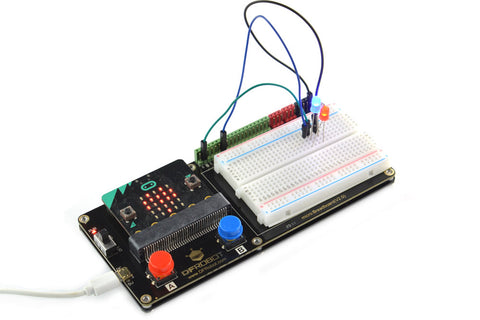

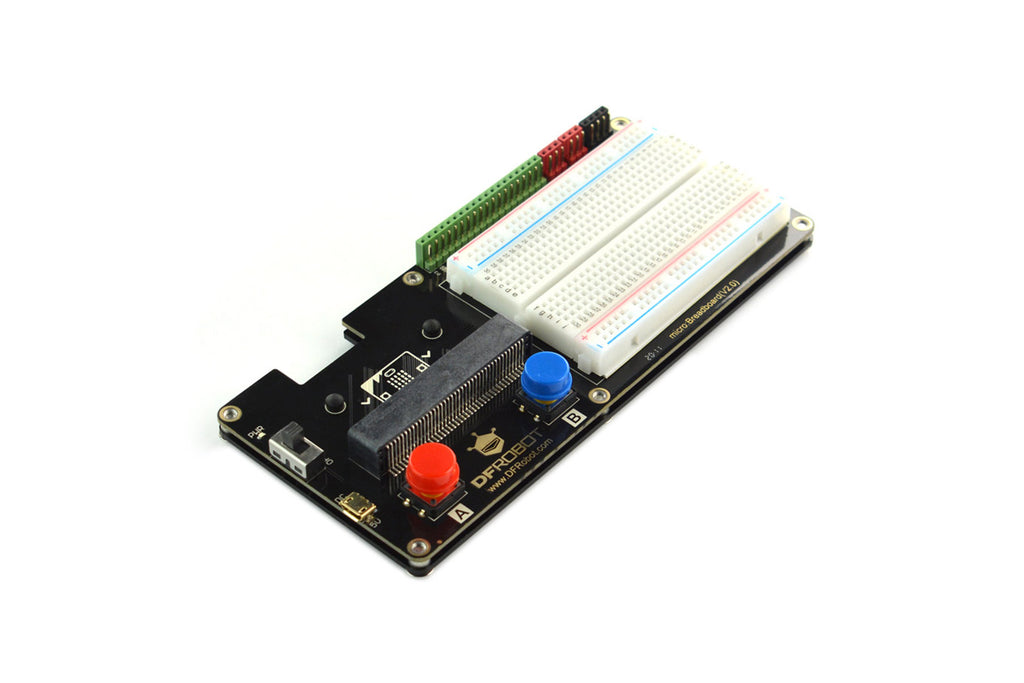

The DFRobot micro: Breadboard micro Expansion Board is a solder-free development platform designed for building and debugging micro electronic circuits. It provides access to 19 micro I/O pins through pin-header and female-header connectors, allowing direct connection of electronic components on the included 16.2 × 7.2 cm breadboard. The board operates from 3.3–5 V and includes a Micro USB 5 V power interface, independent power switch, PWR indicator, and 2 onboard A/B buttons. It supports visual programming, Mind+, and Python, making it suitable for STEM education, circuit prototyping, and micro applications such as lighting control, smart doorbells, and temperature alarms.

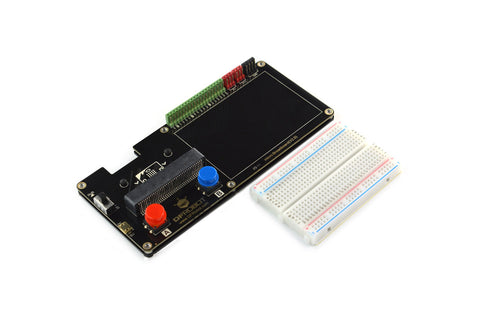

• Breadboard Interface: Includes a 16.2 × 7.2 cm middle-size breadboard for solder-free circuit assembly and testing.
• I/O Connectors: Exposes 19 micro I/O pins through pin-header and female-header connectors.
• Power Interface: Provides a Micro USB 5 V power input with an independent power switch.
• Voltage Range: Supports an operating voltage of 3.3–5 V, with digital output at 0 V or 3.3 V.
• Onboard Controls: Includes 2 programmable A/B buttons for user input and project control.
• Status Indicator: Integrated PWR indicator provides visual power-status indication.
• Programming Support: Compatible with visual programming, Mind+, and Python development environments.
• Mounting Interface: Provides M3 mounting holes for mechanical installation.



• Compatibility: micro:bit
• Operating Voltage: 3.3–5 V
• Digital Output Voltage: 0 V / 3.3 V
• Analog Output Voltage: 0–3.3 V DC
• I/O Interface: 19 × micro:bit I/O pins

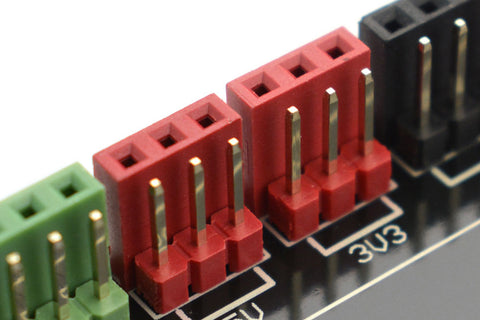

• Connector Type: Pin header and female header
• Power Interface: 5 V Micro USB
• Power Interface Quantity: 4
• Ground Ports: 4
• Breadboard Size: 16.2 × 7.2 cm
• Mounting Holes: M3

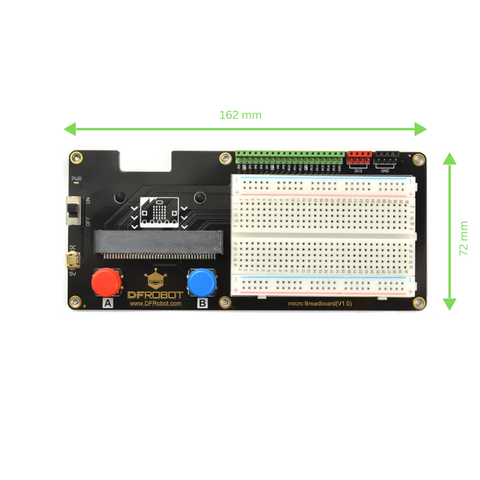

• Board Dimensions: 16.2 × 7.2 cm
