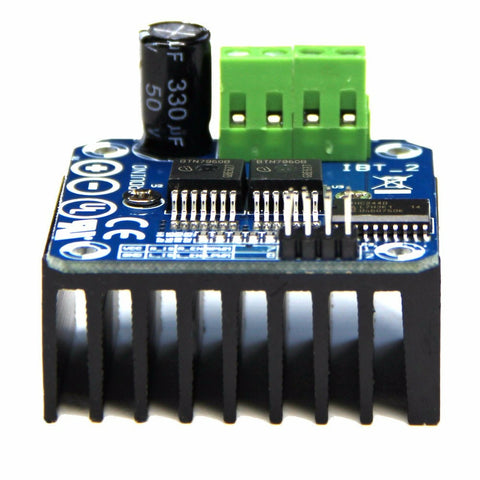

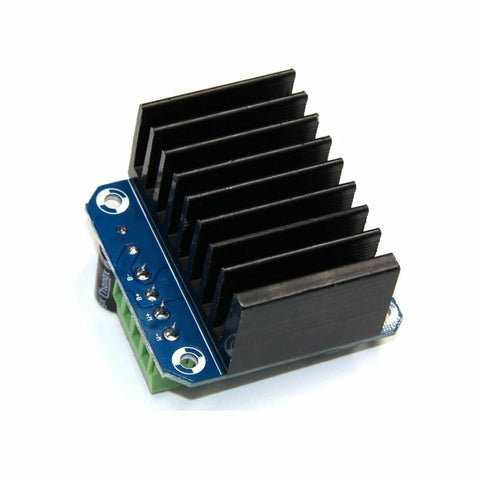

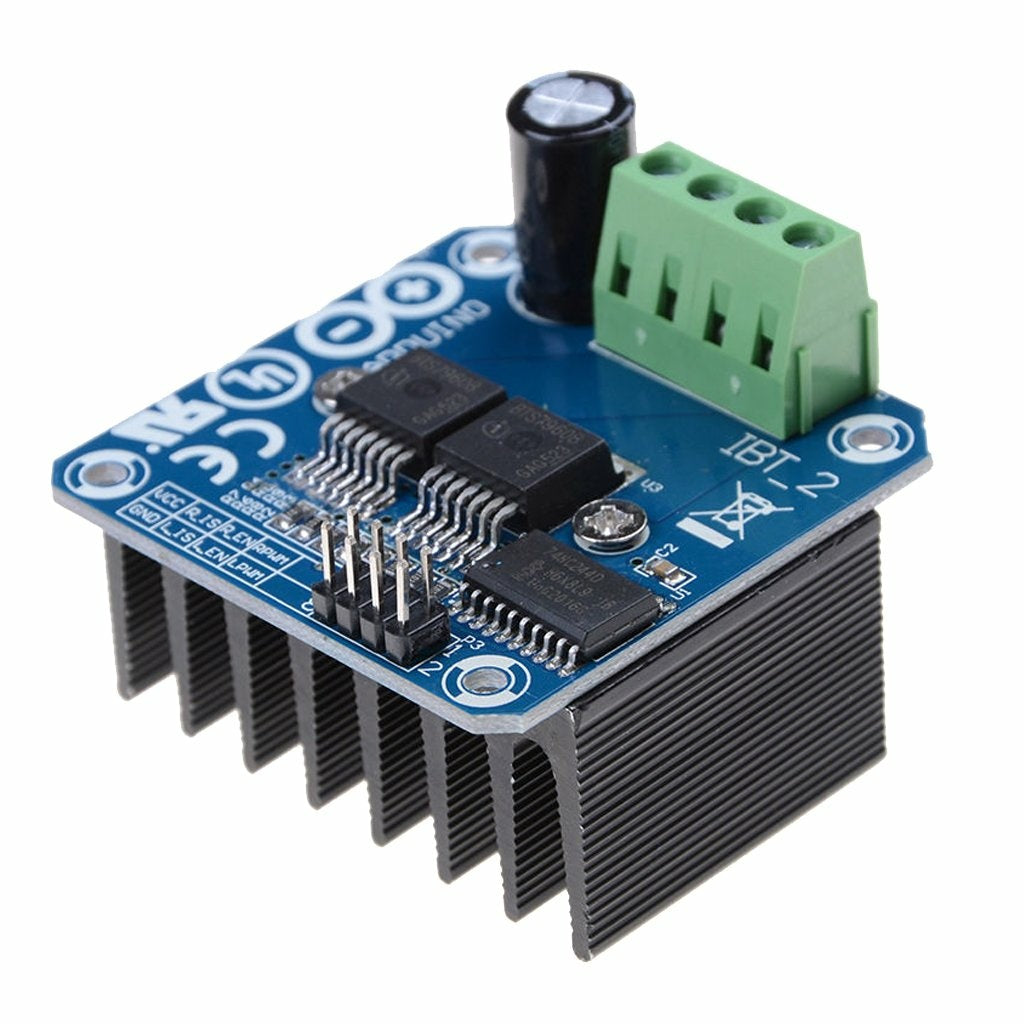

BTS7960 H-Bridge Motor Driver Module – 43A High Current PWM Control

The BTS7960 H-Bridge Motor Driver Module is a high-current motor control solution designed for driving large DC motors and high-torque applications. It is based on the Infineon BTS7960 half-bridge IC, featuring a dual MOSFET H-bridge configuration for efficient bidirectional motor control. The module supports PWM signal input for precise speed regulation and operates within a wide voltage range of 6–27V DC. Built for stable and reliable performance, it includes integrated protection features such as over-current, over-temperature, and under-voltage lockout. It is suitable for robotics, CNC systems, electric vehicles, and industrial automation projects.

• BTS7960 high-current half-bridge driver IC
• Dual MOSFET H-bridge configuration

• Supports bidirectional DC motor control

• High continuous current up to 43A with cooling

• PWM speed control up to 25kHz

• Logic level compatibility with 3.3V and 5V systems

• Integrated over-current protection

• Built-in over-temperature protection
• Under-voltage lockout safety feature

• Low on-resistance for efficient power handling

• High switching speed for smooth motor operation

• Screw terminals for secure power connections

• Heat sink support for thermal management

• Suitable for high-power motor applications

• Compatible with Arduino and microcontroller platforms

• Operating Voltage: 6–27V DC

• Continuous Current: Up to 43A (with cooling)

• Peak Current: Up to 50A

• Logic Voltage: 3.3V / 5V

• Control Signal: PWM input

• PWM Frequency: Up to 25kHz

• Driver IC: BTS7960

• Bridge Type: Dual H-Bridge

• Motor Type: DC motor, high-power motor

• Protection Features: Over-current, over-temperature, under-voltage

• On-State Resistance: Low Rds(on) MOSFET design

• Interface Type: Logic pins + screw terminals

• Cooling Requirement: Heat sink recommended for high load

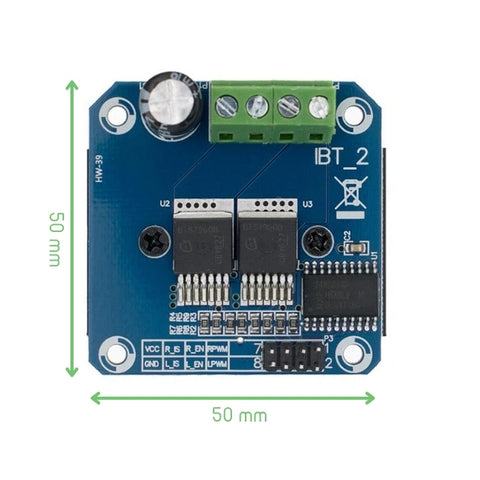

• Dimensions: 50mm × 50mm × 43mm

• Mounting Hole Diameter: 3mm
