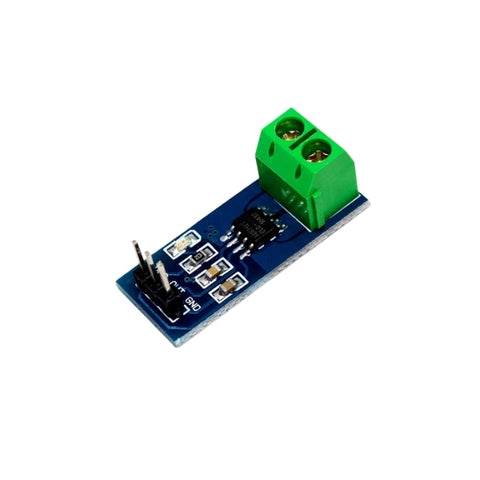

ACS712 Hall Effect Current Sensor Module – 20A

The ACS712ELCTR-20A Hall Effect Current Sensor Module is designed for precise AC and DC current measurement up to 20A. It utilizes a fully integrated Hall-effect linear sensor that provides an analog voltage output proportional to the sensed current at 100 mV/A sensitivity. Operating at 5V DC, the module outputs VCC/2 when no current is present, enabling bidirectional current detection. Its compact breakout design ensures easy integration with Arduino and other 5V microcontroller platforms for monitoring, control, and protection applications.

• ACS712ELCTR-20A Hall-effect current sensor

• Measures AC and DC current up to 20A

• 100 mV/A output sensitivity

• Analog voltage output proportional to current

• 5V DC operating voltage

• VCC/2 zero-current output level

• Bidirectional current measurement capability

• Low internal conductor resistance

• Electrical isolation via Hall-effect sensing

• Compact breakout board design

• Compatible with Arduino and 5V MCUs

• Onboard filtering capacitor support


• Operating Voltage: 5V DC

• Current Measurement Range: -20A to +20A

• Sensitivity: 100 mV/A

• Zero Current Output Voltage: 2.5V

• Output Type: Analog Voltage

• Sensor Type: Hall Effect Linear

• Internal Conductor Resistance: 1.2 mΩ (typical)

• Bandwidth: 80 kHz (typical)

• Response Time: 5 µs

• Isolation Voltage: 2.1 kVRMS

• Operating Temperature: -40°C to +85°C

• Board Type: Breakout Module
