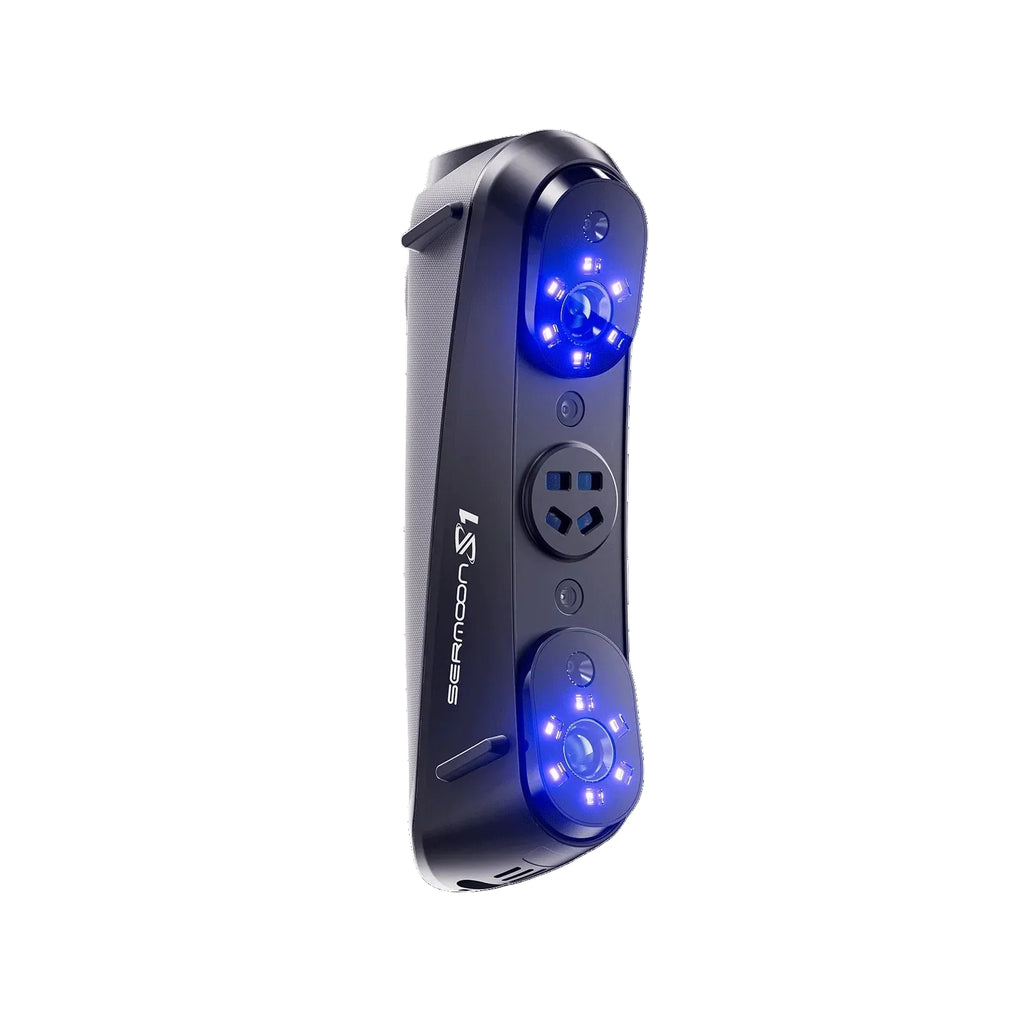

Creality Sermoon S1 3D Scanner

Sale
Regular price 8,799 QAR

Product ID: VT-4771

1 in stock

Description
Key Specs
Reviews
Questions & Answers

Description

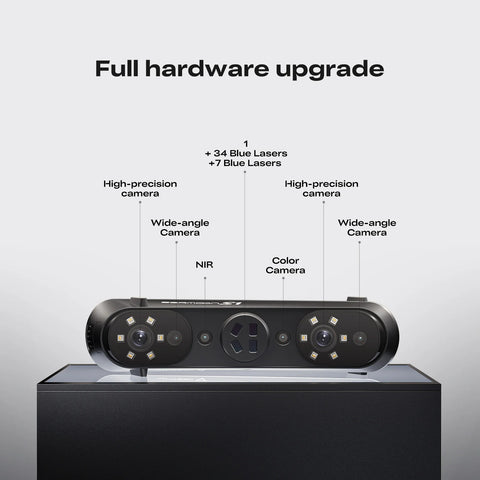

The Sermoon S1 Portable 3D Scanner from Creality packs robust, multi-light scanning and high-accuracy cameras into a small form factor that's suitable for professional and hobbyist applications. The scanner uses 4-lens NIR structured light for fast, marker-free scanning of larger objects. It has blue laser capabilities as well, with single, 7 parallel, and 34 cross-line modes to capture objects of different sizes and detail. It is accurate down to 0.02mm.

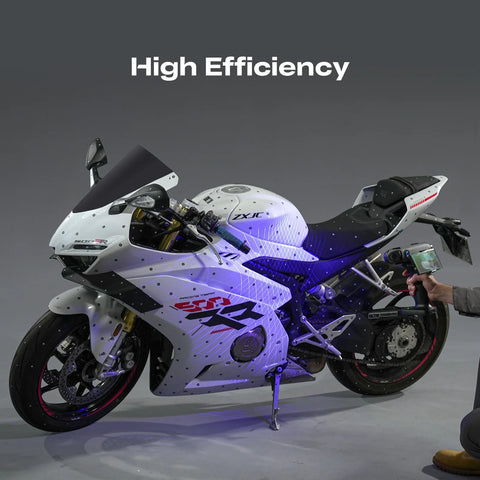

With a scanning speed of up to 90 fps and the ability to capture up to 4,600,000 each second, the Sermoon S1 is equipped to handle fast-paced workflows as well. It has a scan range between 0.19 and 157.5", allowing you to capture objects as small as coins and as large as vehicles. The scanner boasts a maximum single capture range of 49 x 30" at 39", and has a working distance of 5.9 to 47.2". It can be connected to a Windows or macOS computer via the included USB data cable.

Multi-Light Versatility The multitude of light sources makes the Sermoon S1 a versatile companion in the studio. The single laser line is ideal for accurate 3D data of deep holes and hard-to-reach areas. The 7 parallel laser line mode captures fine surface details of complex objects with single-line precision and up to a 0.1mm resolution. The 34 cross line mode covers medium to large objects to maximize work efficiency. 4-lens NIR structured light allows for fast, marker-free scanning for large objects and the human body. Smart Stability Powered by an AI-driven temperature compensation algorithm and an efficient thermal management system, the Sermoon S1 maintains stable output, even during prolonged sessions. Its One-Shot 3D imaging technology ensures higher tracking stability, effectively minimizing frame drops and misalignment caused by hand movement. This significantly improves overall scanning accuracy and efficiency. Intuitive Software and Integration The scanner is compatible with CrealityScan 4.0, which is a professional 3D scanning software that combines user-friendly design with powerful image and point cloud processing. With step-by-step tutorials, one-click model processing, and intuitive editing tools, the software makes it simpler to bring your projects to life. Scan data can be imported into popular reverse engineering, 3D inspection, and design software programs such as QuickSurface and Geomagic Design X as well. Additional Details

Single and cross-line lasers can operate at 100,000 lux or less, while the 7-line mode works in 50,000 lux or less

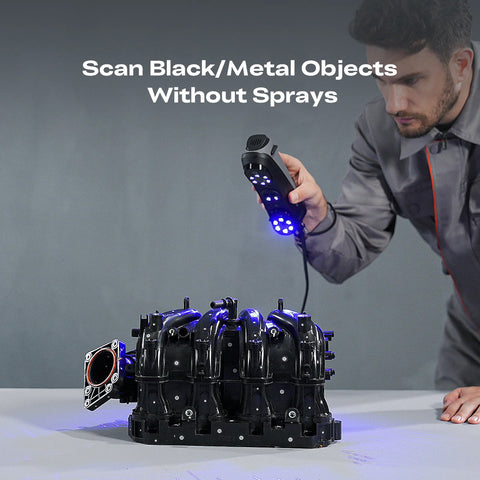

Black, metal objects can be captured without the use of spray powder
A waterproof carrying case is included for travel and work in the field

Key Specs

Scan Speed	90 fps
Scan	Volume: Minimum: 0.2 x 0.2 x 0.2" / 5 x 5 x 5 mm Maximum: 157.5 x 157.5 x 157.5" / 4000 x 4000 x 4000 mm
Accuracy	0.02 mm
Working Distance	5.9 to 47.2" / 150 to 1200 mm
File Formats	ASC, OBJ, PLY, STL

Scan Speed	90 fps
Scan	Volume: Minimum: 0.2 x 0.2 x 0.2" / 5 x 5 x 5 mm Maximum: 157.5 x 157.5 x 157.5" / 4000 x 4000 x 4000 mm
Light Source	Near-Infrared (NIR) + Laser
Accuracy	0.02 mm
Working Distance	5.9 to 47.2" / 150 to 1200 mm
File Formats	ASC, OBJ, PLY, STL
System Connection	USB-C (Version Unspecified)
Display	No
OS Compatibility	Windows 10 or Later / macOS
Memory Requirement	16 GB
VRAM Requirement	6 GB (Minimum) 8 GB (Recommended)
Dimensions	8.9 x 3 x 2.1" / 225 x 76 x 53 mm
Weight	1.1 lb / 508 g
