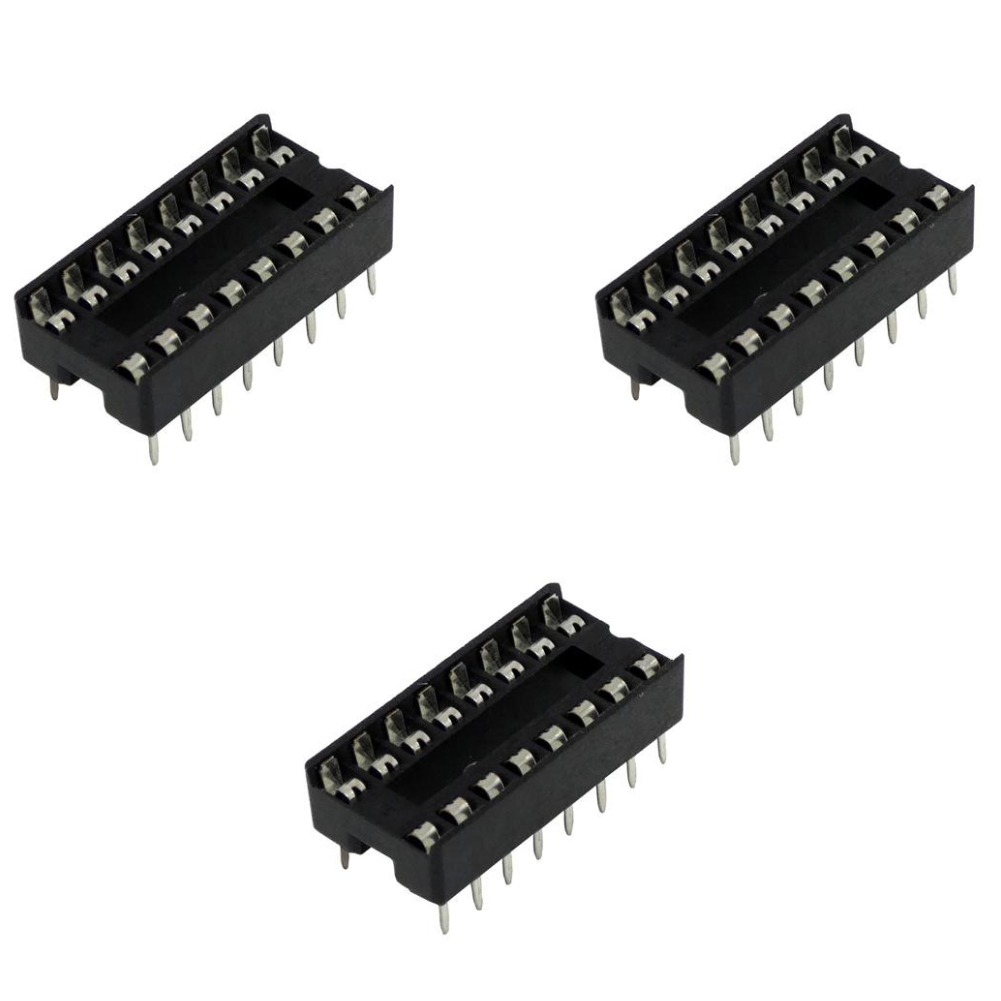

16-Pin IC Socket Through-Hole - 3 Pieces

This 16-pin IC socket is designed to mount dual in-line package integrated circuits while allowing safe insertion and removal.
It protects IC leads from soldering heat and mechanical stress during assembly and maintenance.
The socket supports standard DIP-16 devices used in logic, analog, and mixed-signal circuits.
Through-hole mounting ensures stable mechanical fixation and consistent electrical contact.
It is suitable for prototyping, testing, and serviceable PCB designs.

• 16-Pin DIP Configuration supporting standard integrated circuits

• Through-Hole Mounting providing reliable PCB attachment

• Spring Contact Terminals ensuring consistent electrical contact

• Heat Isolation Structure protecting ICs during soldering

• Removable IC Support enabling easy replacement and testing

• Insulating Housing Material preventing electrical shorts

• Product Type | IC Socket

• Pin Count | 16

• Compatible Package | DIP-16

• Mounting Type | Through-hole

• Contact Material | Phosphor bronze

• Contact Plating | Tin plated

• Insulation Material | Thermoplastic

• Operating Temperature Range | −40 °C to 105 °C

• Row Spacing | 7.62 mm

• Quantity | 3-pieces

• 3D Model
