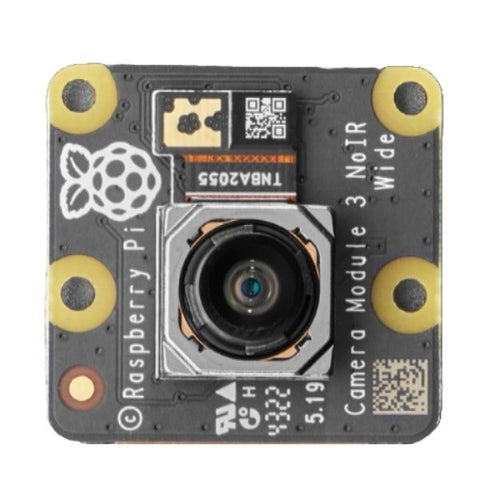

Raspberry Pi Camera Module 3 Wide NoIR – 12MP Autofocus

The Raspberry Pi Camera Module 3 NoIR Wide Angle is a camera module designed for Raspberry Pi systems without an infrared filter. It is based on the 12MP Sony IMX708 image sensor and provides improved low-light sensitivity for imaging in reduced lighting conditions. The module supports powered autofocus to ensure accurate focus across different distances. High Dynamic Range HDR support enhances color and contrast in captured images. This NoIR version features a wide-angle lens with a 120° field of view, making it suitable for vision systems, low-light imaging, robotics, and educational applications.

• Image Sensor: Sony IMX708 CMOS, back-illuminated, stacked
• Sensor Resolution: 12 megapixel
• IR Filter: None (NoIR)
• Lens Type: Wide-angle lens

• Field of View: 120°

• Autofocus: Phase Detection Autofocus PDAF

• HDR Support: Yes, up to 3MP output

• Output Interface: CSI-2 serial interface

• Control Interface: 2-wire serial I2C fast and fast-mode plus

• Autofocus Control: 2-wire serial control

• Operating Voltage: 5V DC

• Supported Platforms: Raspberry Pi boards with CSI connector
